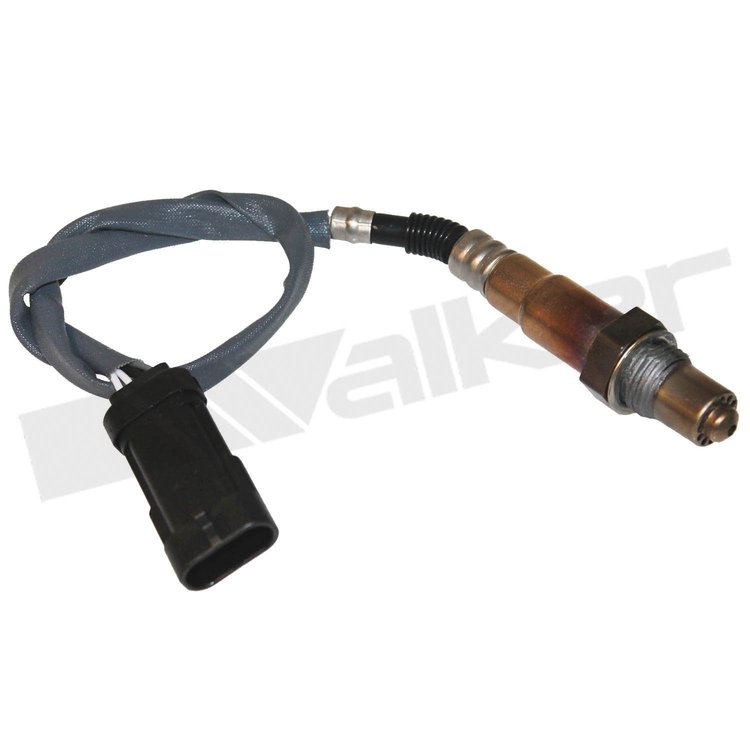

Oxygen Sensor2001-2010 Nissan, Renault Applications Downstream, Upstream Position 4-Wire Narrow-Band Heated M18x1.5 Thread 470 mm (18.5 in.) Overall Length Female Rectangle Connector Sold Individually
The oxygen sensor installs on select 2001-2010 Nissan and Renault applications. It signals whether the exhaust is running rich or lean so the engine computer can trim fuel delivery. A built-in heater brings the element to operating temperature quickly after a cold start.
Walker Products 350-34354 Oxygen Sensor Features:
- Fits 2002-2010 Nissan Platina, Renault Clio; 2001-2010 Renault Megane; 2001-2004 Renault Scenic; 2004-2010 Renault Kangoo Express; 2005-2008 Renault Scenic II
- Fits 2006 Renault Laguna; 2007-2009 Renault Kangoo; 2007-2010 Renault Trafic
- Engine coverage includes 1.6L I4, 1.9L I4, 2.0L I4 applications
- Sensor locations by application: B1S1, B1S2 (bank and sensor number)
- Used in both upstream and downstream positions, depending on application
- 4-wire narrow-band oxygen sensor
- Built-in heater for fast warm-up
- M18x1.5 threaded mounting with a 22 mm hex, 470 mm (18.5 in.) overall length
- Female rectangle connector at the harness end with 4 spade terminals
- Platinum electrode layer with a protective coating against combustion residue
Part TypeOxygen Sensor
BrandWALKER PRODUCTS
Package Height1.85
Package Width2.12
Package Length5.75
Weight0.26 PG
Part CategoryReplacement Parts
Wrench Size22
Universal Or Specific FitSpecific
Wire Quantity4
Wire Gauge Measurement20
Terminal TypeSpade
Connector GenderFemale
Overall Length18.5 in. (470mm)
Thread SizeM18 - 1.5
Mounting TypeThreaded
Connector ShapeRectangle
Terminal GenderMale
Sensor TypeNarrow-Band
HeatedYes
Wiring Harness Length470
Terminal Quantity4
Part FitmentDirect Fit
Grade TypeStandard Replacement
Vendor Part Number350-34354
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
