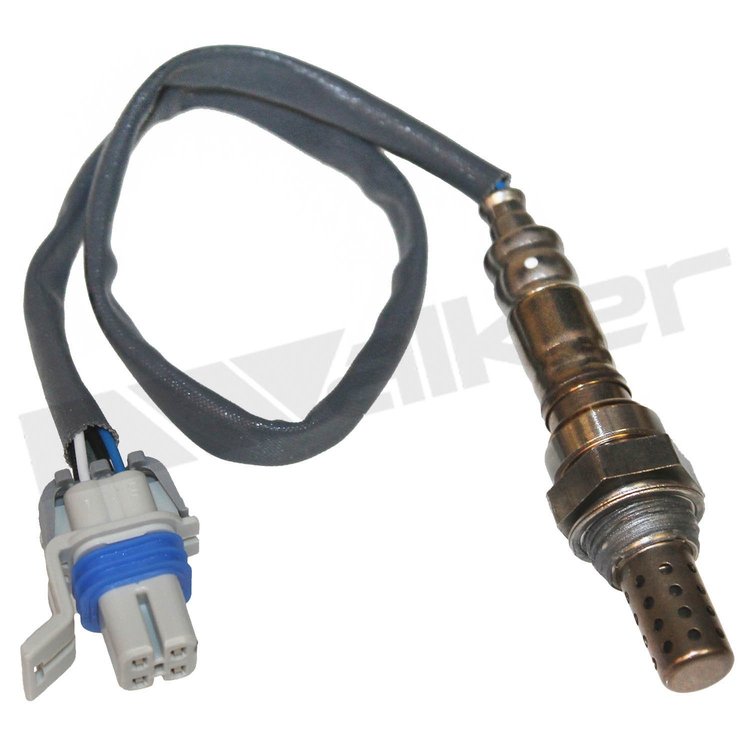

Oxygen Sensor2000-2009 Cadillac, Chevy, GMC, Pontiac, Saturn Applications Downstream, Upstream Position 4-Wire Narrow-Band Heated M18x1.5 Thread 460 mm (18.1 in.) Overall Length Male Square Connector Sold Individually
The oxygen sensor installs on select 2000-2009 Cadillac, Chevy, GMC, Pontiac and other applications. It signals whether the exhaust is running rich or lean so the engine computer can trim fuel delivery. A built-in heater brings the element to operating temperature quickly after a cold start.
Walker Products 350-34415 Oxygen Sensor Features:
- Fits 2000-2005 Cadillac DeVille; 2000-2002 Cadillac Eldorado; 2000-2004 Cadillac Seville
- Fits 2003-2006 Cadillac Escalade, Escalade ESV, Escalade EXT, Chevy Express 2500, 3500; 2004-2007 Cadillac CTS, Chevy Malibu; 2003-2004 Chevy Cargo Van
- Also fits select Cadillac, Chevy, GMC, Pontiac and Saturn applications
- Sensor locations by application: B1S1, B1S2, B2S1, B2S2 (bank and sensor number)
- Used in both upstream and downstream positions, depending on application
- 4-wire narrow-band oxygen sensor
- Built-in heater for fast warm-up
- M18x1.5 threaded mounting with a 22 mm hex, 460 mm (18.1 in.) overall length
- Male square connector at the harness end
- Platinum electrode layer with a protective coating against combustion residue
Part TypeOxygen Sensor
BrandWALKER PRODUCTS
Package Height1.85
Package Width2.12
Package Length5.75
Weight0.23 PG
Part CategoryReplacement Parts
Wrench Size22
Universal Or Specific FitSpecific
Wire Quantity4
Wire Gauge Measurement20
Terminal TypeSpade
Connector GenderMale
Overall Length18.11 in. (460mm)
Thread SizeM18 - 1.5
Mounting TypeThreaded
Connector ShapeSquare
Terminal GenderFemale
Sensor TypeNarrow-Band
HeatedYes
Wiring Harness Length18.11 in. (460mm)
Part FitmentDirect Fit
Grade TypeStandard Replacement
Vendor Part Number350-34415
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
