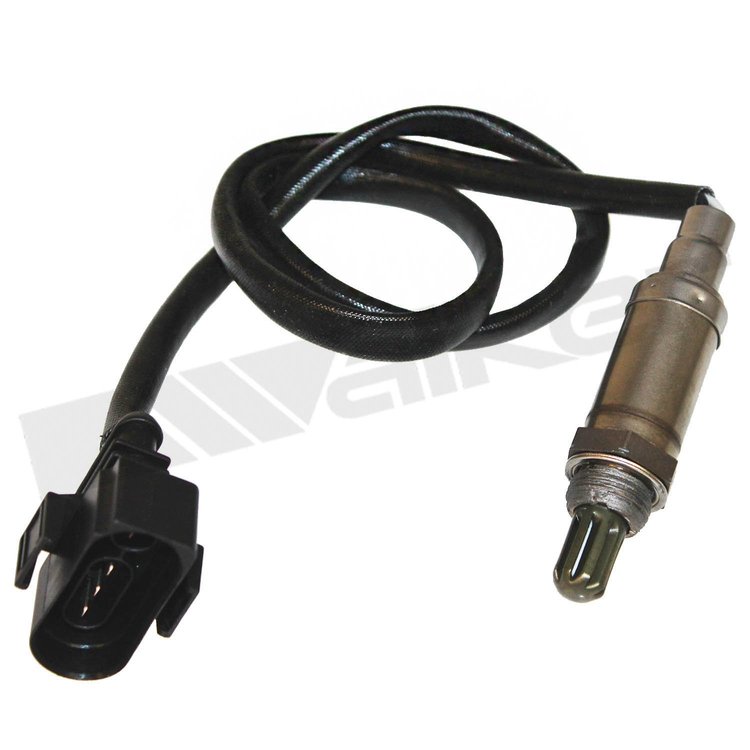

Oxygen Sensor1995-2010 Audi, Volkswagen Applications Downstream, Upstream Position 4-Wire Narrow-Band Heated M18x1.5 Thread 740 mm (29.1 in.) Overall Length Male Rectangle Connector Sold Individually
The 4-wire narrow-band oxygen sensor is a replacement sensor for select 1995-2010 Audi and Volkswagen applications. It signals whether the exhaust is running rich or lean so the engine computer can trim fuel delivery. A built-in heater brings the element to operating temperature quickly after a cold start.
Walker Products 350-34427 Oxygen Sensor Features:
- Fits 1997-1999 Audi A4, A8, A8 Quattro; 1997-2000 Audi A4 Quattro, Volkswagen EuroVan; 1998-1999 Audi A6, A6 Quattro; 1995-1998 Volkswagen Golf
- Fits 1995-1999 Volkswagen Jetta; 1996-2000 Volkswagen Passat; 1998-2009 Volkswagen Pointer; 1998-2010 Volkswagen Pointer Truck
- Engine coverage includes 1.8L I4, 2.0L I4, 2.8L V6, 3.7L V8, 4.2L V8 applications
- Sensor locations by application: B1S1, B1S2 (bank and sensor number)
- Used in both upstream and downstream positions, depending on application
- 4-wire narrow-band oxygen sensor
- Built-in heater for fast warm-up
- M18x1.5 threaded mounting with a 22 mm hex, 740 mm (29.1 in.) overall length
- Male rectangle connector at the harness end
- Platinum electrode layer with a protective coating against combustion residue
Part TypeOxygen Sensor
BrandWALKER PRODUCTS
Package Height1.85
Package Width2.12
Package Length5.75
Weight0.29 PG
Part CategoryReplacement Parts
Wrench Size22
Universal Or Specific FitSpecific
Wire Quantity4
Wire Gauge Measurement20
Terminal TypeSpade
Connector GenderMale
Overall Length29.13 in. (740mm)
Thread SizeM18 - 1.5
Mounting TypeThreaded
Connector ShapeRectangle
Terminal GenderMale
Sensor TypeNarrow-Band
HeatedYes
Wiring Harness Length740
Part FitmentDirect Fit
Grade TypeStandard Replacement
Vendor Part Number350-34427
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
