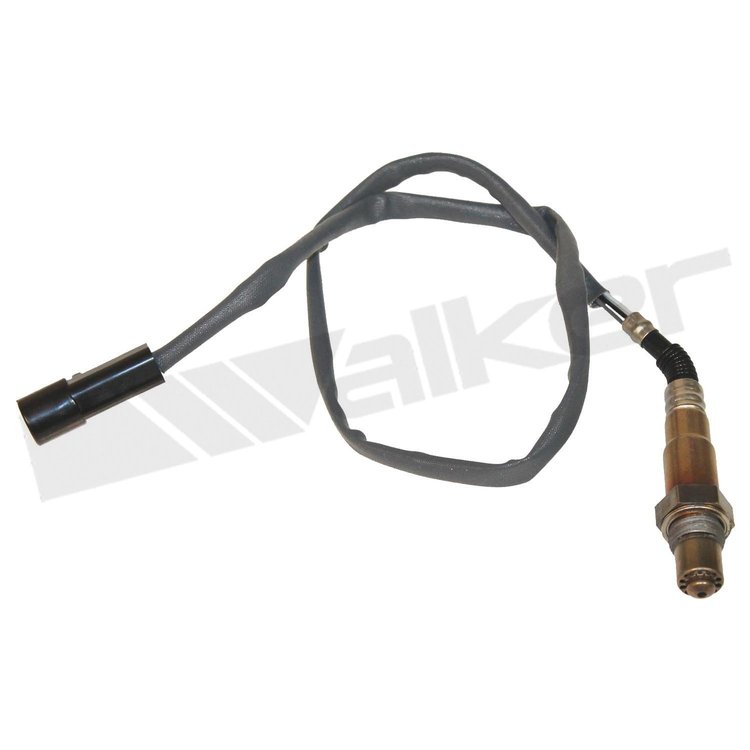

Oxygen Sensor2013-2019 Ford Escape, Fiesta, Transit Connect, Volkswagen Combi Downstream, Upstream Position 4-Wire Narrow-Band Heated M18x1.5 Thread 750 mm (29.5 in.) Overall Length Male Circle Connector Sold Individually
The 4-wire narrow-band oxygen sensor is a replacement sensor for 2013-2016 Ford Escape, 2014-2019 Ford Fiesta, 2014-2016 Ford Transit Connect and 2014 Volkswagen Combi. It signals whether the exhaust is running rich or lean so the engine computer can trim fuel delivery. A built-in heater brings the element to operating temperature quickly after a cold start.
Walker Products 350-34569 Oxygen Sensor Features:
- Fits 2013-2016 Ford Escape; 2014-2019 Ford Fiesta; 2014-2016 Ford Transit Connect; 2014 Volkswagen Combi
- Engine coverage includes 1.4L I4, 1.6L I4 applications
- Sensor location by application: B1S2 (bank and sensor number)
- Used in both upstream and downstream positions, depending on application
- 4-wire narrow-band oxygen sensor
- Built-in heater for fast warm-up
- M18x1.5 threaded mounting with a 22 mm hex, 750 mm (29.5 in.) overall length
- Male circle connector at the harness end
- Platinum electrode layer with a protective coating against combustion residue
Part TypeOxygen Sensor
BrandWALKER PRODUCTS
Package Height1.85
Package Width2.12
Package Length5.75
Weight0.28 PG
Part CategoryReplacement Parts
Wrench Size22
Universal Or Specific FitSpecific
Wire Quantity4
Wire Gauge Measurement22
Terminal TypeBullet
Connector GenderMale
Overall Length29.53 in. (750mm)
Thread SizeM18 - 1.5
Mounting TypeThreaded
Connector ShapeCircle
Terminal GenderMale
Sensor TypeNarrow-Band
HeatedYes
Wiring Harness Length750
Part FitmentDirect Fit
Grade TypeStandard Replacement
Vendor Part Number350-34569
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
