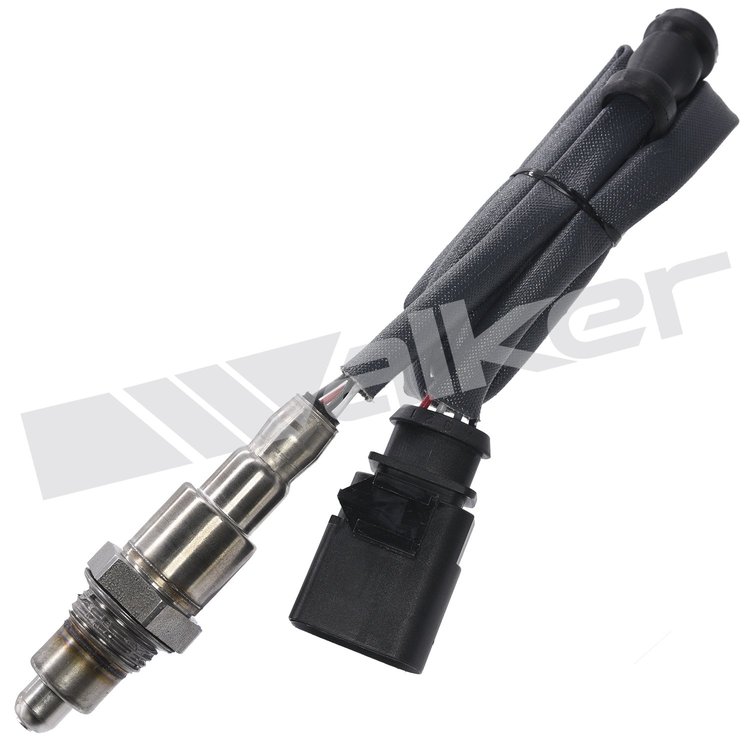

Oxygen Sensor2015-2023 Audi, Seat, Volkswagen Applications 4-Wire Narrow-Band Heated M18x1.5 Thread 775 mm (30.5 in.) Overall Length Male Oblong Connector Sold Individually
The oxygen sensor installs in the downstream position on select 2015-2023 Audi, Seat and Volkswagen applications. It signals whether the exhaust is running rich or lean so the engine computer can trim fuel delivery. A built-in heater brings the element to operating temperature quickly after a cold start.
Walker Products 350-34788 Oxygen Sensor Features:
- Fits 2015-2020 Audi A3; 2015-2018 Audi A3 Quattro, S3, Seat Leon, Volkswagen GTI, Golf; 2015-2016 Audi A8 Quattro; 2016-2018 Audi TT, TTS Quattro; 2017-2023 Audi R8
- Fits 2020-2022 Audi A1; 2016-2017 Seat Ibiza, Toledo; 2021 Seat Formentor; 2015-2019 Volkswagen Golf R, SportWagen; 2017-2019 Volkswagen Golf Alltrack
- Also fits select Audi, Seat and Volkswagen applications
- Sensor locations by application: B1S2, B2S2 (bank and sensor number)
- 4-wire narrow-band oxygen sensor
- Built-in heater for fast warm-up
- M18x1.5 threaded mounting with a 22 mm hex, 775 mm (30.5 in.) overall length
- Male oblong connector at the harness end with 4 spade terminals
- Platinum electrode layer with a protective coating against combustion residue
Part TypeOxygen Sensor
BrandWALKER PRODUCTS
Package Height1.85
Package Width2.12
Package Length5.75
Weight0.29 PG
Part CategoryReplacement Parts
Wrench Size22
Universal Or Specific FitSpecific
Wire Quantity4
Wire Gauge Measurement20
Terminal TypeSpade
Connector GenderMale
Overall Length30.51 in. (775mm)
Thread SizeM18 - 1.5
Mounting TypeThreaded
Connector ShapeOblong
Terminal GenderMale
Sensor TypeNarrow-Band
HeatedYes
Wiring Harness Length775
Terminal Quantity4
Part FitmentDirect Fit
Grade TypeStandard Replacement
Vendor Part Number350-34788
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
