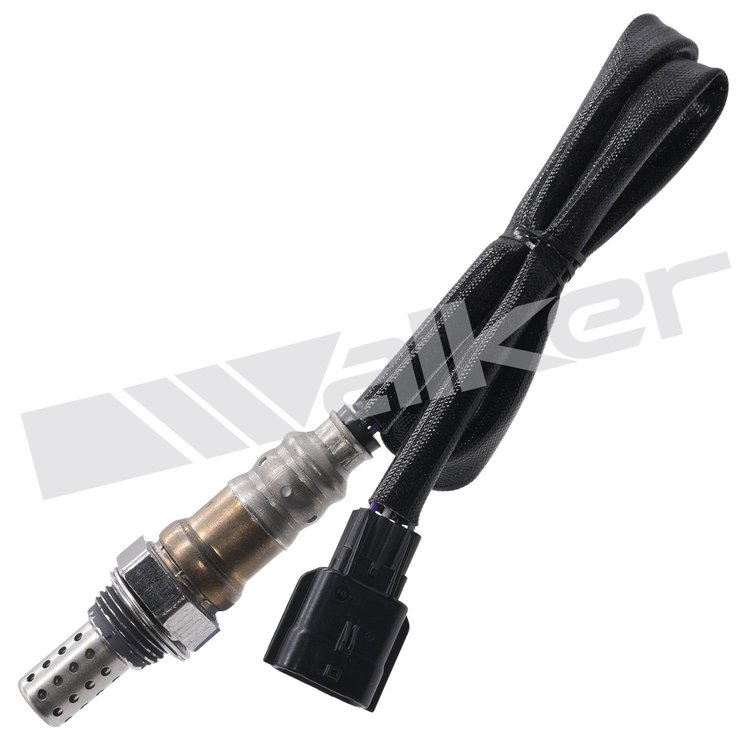

Oxygen Sensor2008-2020 Nissan, Renault Applications Downstream, Upstream Position 4-Wire Narrow-Band Heated M18x1.5 Thread 525 mm (20.7 in.) Overall Length Female Rectangle Connector Sold Individually
This 4-wire narrow-band oxygen sensor fits select 2008-2020 Nissan and Renault applications and signals whether the exhaust is running rich or lean so the engine computer can trim fuel delivery. A built-in heater brings the element to operating temperature quickly after a cold start.
Walker Products 350-34817 Oxygen Sensor Features:
- Fits 2008-2010 Nissan Aprio; 2011-2017 Renault Fluence; 2011-2018 Renault Kangoo Express; 2011-2014 Renault Trafic; 2012-2019 Renault Sandero; 2013-2020 Renault Duster
- Fits 2015-2019 Renault Logan; 2018-2019 Renault Oroch; 2019 Renault Kangoo
- Engine coverage includes 1.6L I4, 1.9L I4, 2.0L I4 applications
- Sensor locations by application: B1S1, B1S2 (bank and sensor number)
- Used in both upstream and downstream positions, depending on application
- 4-wire narrow-band oxygen sensor
- Built-in heater for fast warm-up
- M18x1.5 threaded mounting with a 22 mm hex, 525 mm (20.7 in.) overall length
- Female rectangle connector at the harness end with 4 spade terminals
- Platinum electrode layer with a protective coating against combustion residue
Part TypeOxygen Sensor
BrandWALKER PRODUCTS
Package Height1.85
Package Width2.12
Package Length5.75
Weight0.24 PG
Part CategoryReplacement Parts
Wrench Size22
Universal Or Specific FitSpecific
Wire Quantity4
Wire Gauge Measurement20
Terminal TypeSpade
Connector GenderFemale
Overall Length20.67 in. (525mm)
Thread SizeM18 - 1.5
Mounting TypeThreaded
Connector ShapeRectangle
Terminal GenderMale
Sensor TypeNarrow-Band
HeatedYes
Wiring Harness Length525
Terminal Quantity4
Part FitmentDirect Fit
Grade TypeStandard Replacement
Vendor Part Number350-34817
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
