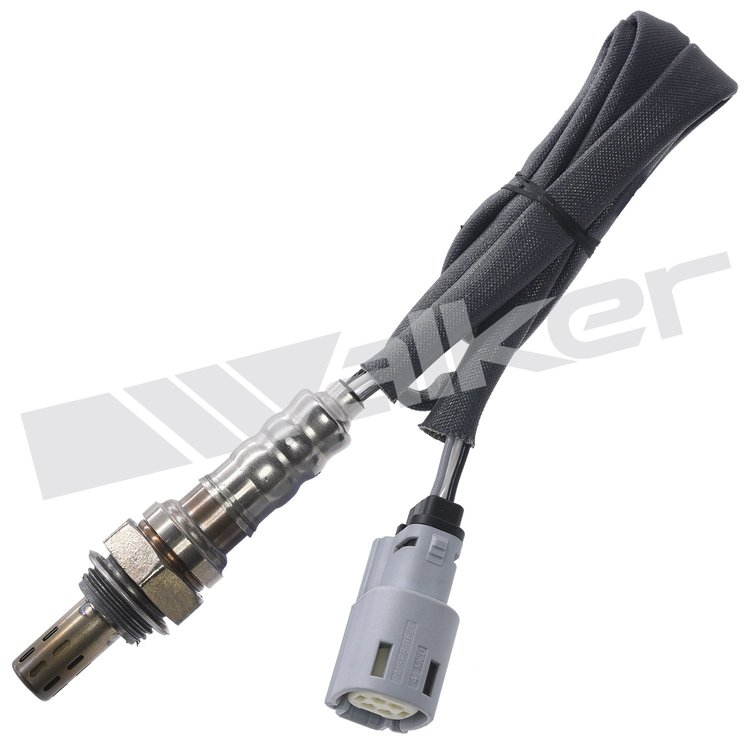

Oxygen Sensor2016-2024 Audi A3, Ford Transit Connect, Escape, Ranger, Volkswagen Jetta 4-Wire Narrow-Band Heated M18x1.5 Thread 800 mm (31.5 in.) Overall Length Female Circle Connector Sold Individually
The oxygen sensor installs in the downstream position on 2022-2023 Audi A3, 2016-2020 Ford Transit Connect, 2017-2018 Ford Escape, 2017-2020 Ford Ranger and 2022-2024 Volkswagen Jetta. It signals whether the exhaust is running rich or lean so the engine computer can trim fuel delivery. A built-in heater brings the element to operating temperature quickly after a cold start.
Walker Products 350-34997 Oxygen Sensor Features:
- Fits 2022-2023 Audi A3; 2016-2020 Ford Transit Connect; 2017-2018 Ford Escape; 2017-2020 Ford Ranger; 2022-2024 Volkswagen Jetta
- Engine coverage includes 1.4L I4, 2.5L I4 applications
- Sensor location by application: B1S2 (bank and sensor number)
- 4-wire narrow-band oxygen sensor
- Built-in heater for fast warm-up
- M18x1.5 threaded mounting with a 22 mm hex, 800 mm (31.5 in.) overall length
- Female circle connector at the harness end with 4 spade terminals
- Platinum electrode layer with a protective coating against combustion residue
Part TypeOxygen Sensor
BrandWALKER PRODUCTS
Package Height1.85
Package Width2.12
Package Length5.75
Part CategoryReplacement Parts
Wrench Size22
Universal Or Specific FitSpecific
Wire Quantity4
Wire Gauge Measurement20
Terminal TypeSpade
Connector GenderFemale
Overall Length31.5 in. (800mm)
Thread SizeM18 - 1.5
Mounting TypeThreaded
Connector ShapeCircle
Terminal GenderFemale
Sensor TypeNarrow-Band
HeatedYes
Wiring Harness Length800
Terminal Quantity4
Part FitmentDirect Fit
Grade TypeStandard Replacement
Vendor Part Number350-34997
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
