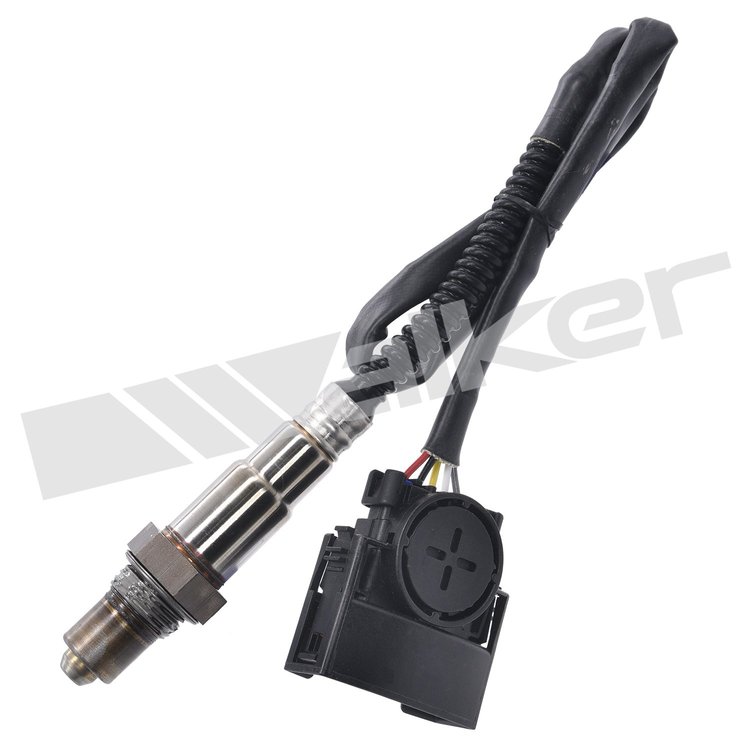

Oxygen Sensor1999-2005 Cadillac Catera, Saturn LS2, LW2, L300, LW300 3.0L V6 Engine 5-Wire Wide-Band Heated M18x1.5 Thread 565 mm (22.2 in.) Overall Length Female Rectangle Connector Sold Individually
The 5-wire wide-band oxygen sensor is a replacement sensor for 1999-2001 Cadillac Catera, 2000 Saturn LS2, LW2, 2001-2005 Saturn L300 and 2001-2003 Saturn LW300 with the 3.0L V6 engine in the upstream position. It measures the exhaust air-fuel ratio across a broad range so the engine computer can meter fuel precisely. A built-in heater brings the element to operating temperature quickly after a cold start.
Walker Products 350-35055 Oxygen Sensor Features:
- Fits 1999-2001 Cadillac Catera; 2000 Saturn LS2, LW2; 2001-2005 Saturn L300; 2001-2003 Saturn LW300 with the 3.0L V6 engine
- 5-wire wide-band oxygen sensor
- Built-in heater for fast warm-up
- M18x1.5 threaded mounting with a 22 mm hex, 565 mm (22.2 in.) overall length
- Female rectangle connector at the harness end
- Platinum electrode layer with a protective coating against combustion residue
Part TypeOxygen Sensor
BrandWALKER PRODUCTS
Package Height1.85
Package Width2.12
Package Length5.75
Weight0.33 PG
Part CategoryReplacement Parts
Wrench Size22
Universal Or Specific FitSpecific
Wire Quantity5
Wire Gauge Measurement20
Terminal TypeSpade
Connector GenderFemale
Overall Length22.24 in. (565mm)
Thread SizeM18 - 1.5
Mounting TypeThreaded
Connector ShapeRectangle
Terminal GenderFemale
Sensor TypeWide-Band
HeatedYes
Part FitmentDirect Fit
Grade TypeStandard Replacement
Vendor Part Number350-35055
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
