WEHRS MACHINEPART NUMBER: 944-WM251-28C

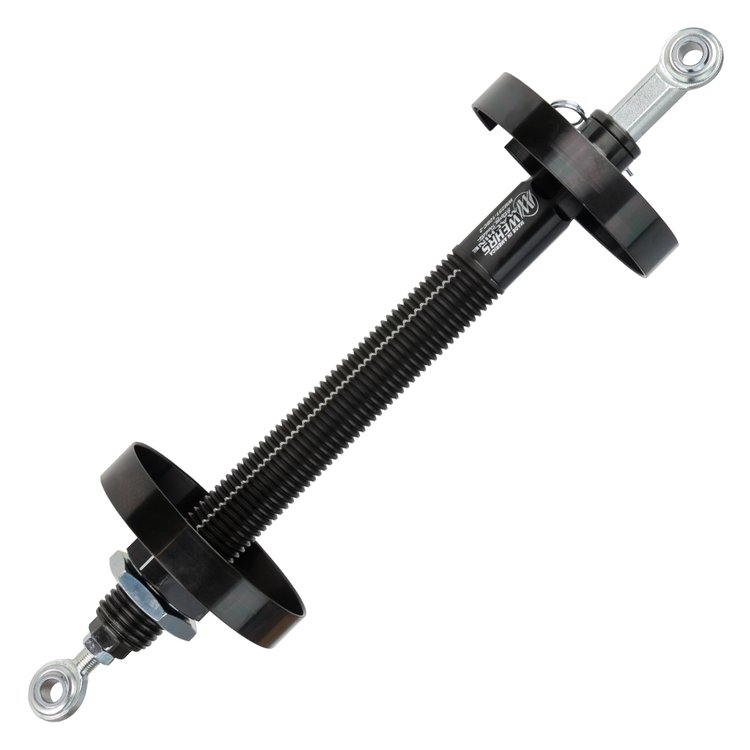

5 in. Spring Slider 28 in. Extended
$35529
5 in. Spring Slider 28 in. ExtendedThe Spring Cup Opposite the Adjusting Nut Is Quickly Removed with a Clip Jam Nut Style Locking System Allows for Fine Tuning The Torrington Bearing on the Adjuster Nut Allows for Easy Sold as a Kit
This is the smoothest and most stable slider on the market.
Wehr's Machine WM251-28C 5 in. Spring Slider 28 in. Extended Features:
- Uses a linear DU bushing on a hard chrome shaft, along with a shaft stabilizing internal piston
- The spring cup opposite the adjusting nut is quickly removed with a clip, so there is no need to unscrew the nut to remove the spring
- The jam nut style locking system allows for fine tuning and keeps the nut from moving while racing
- The Torrington bearing on the adjuster nut allows for easy adjustment
- Sliders now come standard with the OD alignment cups
- The WM165BO and OD cups eliminate spring bow when running a soft spring setup
- This is the 28” (WM251-28C) extended coarse thread body for 5 in. OD springs
- This slider has the same compression as the 26 in., but has two more inches of stroke. **Now comes with a lasered line for easy visibilty of the rounds for quick easy adjustment
- Measurements are 19 in. collapsed and 28-3/4 in. extended. * See accessories tab for WM165BO
- Sold as a Kit
Part TypeCoil Spring Slider Kit
BrandWEHRS MACHINE
Package Height6.0
Package Width6.0
Package Length16.0
Weight10.0 PG
Part CategoryPerformance Parts
QuantitySold as a Kit
Part FitmentUniversal
Vendor Part NumberWM251-28C
Package Qty1
Package TypeEA
