Vehicle Info NeededWEIANDPART NUMBER: 925-8019

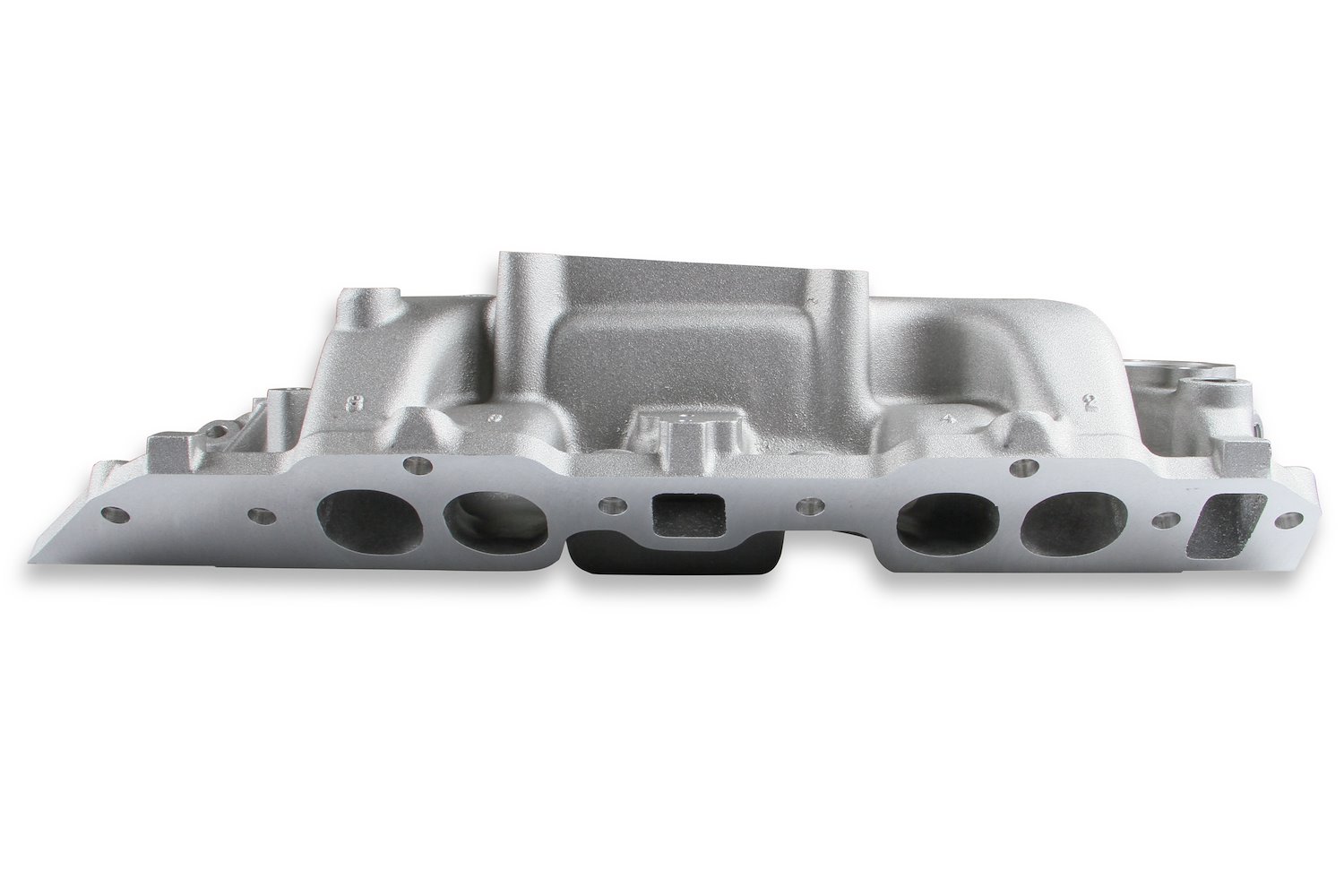

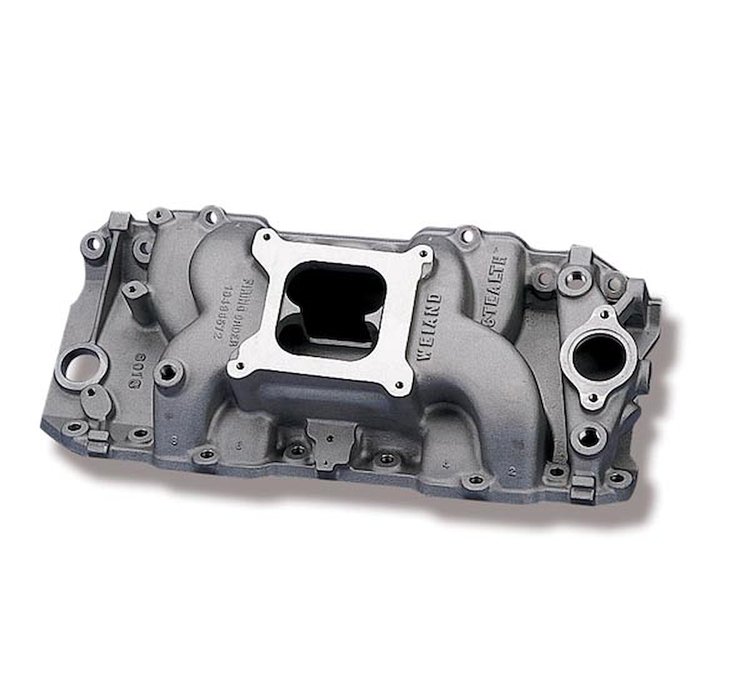

Stealth Intake Manifold BB-Chevy 396-502ci - Oval Port
$45695
4 left in stock
Ships Today
Lowest Price GuaranteeChevy 396-502ci Big Block V8
- Stealth Intake Manifold
- BB-Chevy 396-502ci - Oval Port
- 4150 Carb Flange
- Idle-6500 RPM Range
- Will clear HEI distributor
- High Rise/Dual Plane Design
- 4150 Style Square Bore Mounting Flange
- Machined for Standard Deck Blocks
- Power band: Idle-6800 RPM
- Height: Front 4.75", Rear 5.75"
- Port Size: 1.84" height, 1.64" width
- Recommended intake manifold gasket p/n 555-210102
- Recommended thermostat housing gasket p/n 375-2201
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeIntake Manifold
BrandWEIAND
Package Height7.3
Package Width12.0
Package Length25.0
Weight24.7 PG
Part CategoryPerformance Parts
Engine Block StyleStock/OEM standard Deck
UsageStreet/Strip
ConstructionCast
Number Of CarbsOne
Intake MaterialAluminum
PositionLower
Intake StyleSingle plane
Fuel System TypeCarburetor
EmissionWithout EGR
QuantitySold individually
Cylinder Head TypeStandard
Intake FinishNatural
Carburetor QuantityOne
Engine Make/SizeChevy Big Block (396-502)
Intake Section IncludedComplete
Basic Operating Rpm RangeIdle-6,800
EgrWithout EGR
Rpm Range1500-6500
Part FitmentSemi Universal
FinishSatin
Manifold TypeHigh Rise
Intake Manifold Height5.75 in (146.05 mm)
Vendor Part Number8019
Package Qty1
Package TypeEA
