Stealth Intake Manifold 221/260/289/302ci
Product Discontinued
WEIANDPART NUMBER: 925-8020

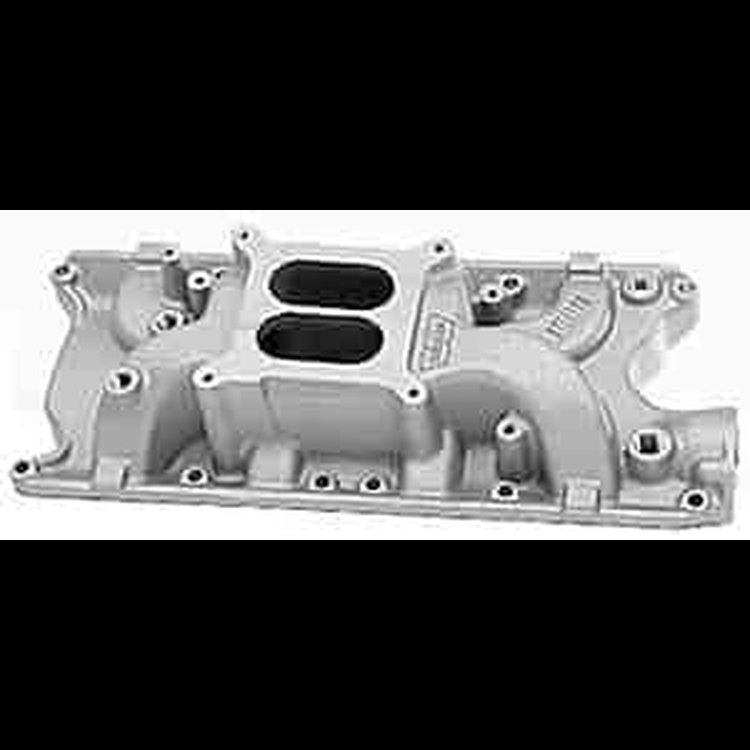

Stealth Intake Manifold 221/260/289/302ci

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Ford 221-302ci Small Block V8
    Stealth Intake Manifold
  • 221/260/289/302ci
  • Fits GT-40 and TFS heads
  • 4150 Carb Flange
  • Idle-6000 RPM Range


  • Fits GT-40 and TFS heads
  • Will not fit 255 or Boss 302 engines
  • No water crossover
  • High Rise Dual Plane Design
  • Square Carburetor Mounting Flange
  • No EGR provisions
  • Power band: Idle-6000 RPM
  • Height: Front 4.35", Rear 5.59"
  • Port Size: 1.83" height, 1.02" width
  • Recommended intake manifold gasket p/n 555-210200

Completely new design plenum and runners for optimized air/fuel distribution and power!

Weiand recognized that todays engine technology has really advanced in our performance world since the Stealth series intake manifolds were originally designed some years ago. With larger stroker motors, more efficient cylinder head designs and aggresive cam profiles has brought about a need for an intake manifold capable of supporting these power houses.

Show MoreSo Weiand wiped the work bench clean and started over.
The newly redesigned Stealth dual plane intakes will nearly match a single plane manifold's peak horsepower number with a much fatter torque curve that is perfect for street and heavy duty/towing applications.



  • High rise, dual plane, design builds maximum torque and horsepower for street/strip applications
  • Square bore carburetor flange
  • permanent mold casting process for lighter, smoother, better looking and more consistent castings
  • Fully CNC machined for a perfect fit

    In addition, some of these manifolds feature Weiand's Everbright coating. Virtually maintenance-free, this polished finish is the product of vacuum metalizing technology and protective clearcoating...looks good, lasts long.

    JEGS Easy Kits are designed by JEGS Professionals to assist your shopping experience. Kit includes Weiand Intake Manifold, Intake Gaskets, Intake Bolts, Carb Gasket, Carb Studs and RTV Silicone Sealer.



Part TypeIntake Manifold
Product LineWeiand Stealth Intake Manifolds
BrandWEIAND
Package Height7.3
Package Width12.0
Package Length24.7
Weight18.28 PG
Part CategoryPerformance Parts
UsageStreet/Hi-Performance
Number Of CarbsOne
EmissionWithout EGR
Rpm RangeIdle-6000
Cylinder Head TypeStandard
Part FitmentSemi Universal
FinishSatin
Engine Make/SizeFord 260-302
Vendor Part Number8020WND
Package Qty1
Package TypeEA
