8170WND Speed Warrior Small Block Chevy Intake Kit
Items You Need
- Intake Manifold
- Intake Manifold Gasket Set
- Intake Manifold Bolts
- Carburetor Stud Kit
- 4-Barrel Carburetor Base Gasket
- Chrome Distributor Hold-Down
- Thermostat Housing
- Vacuum Adapter Fitting
- Gray RTV

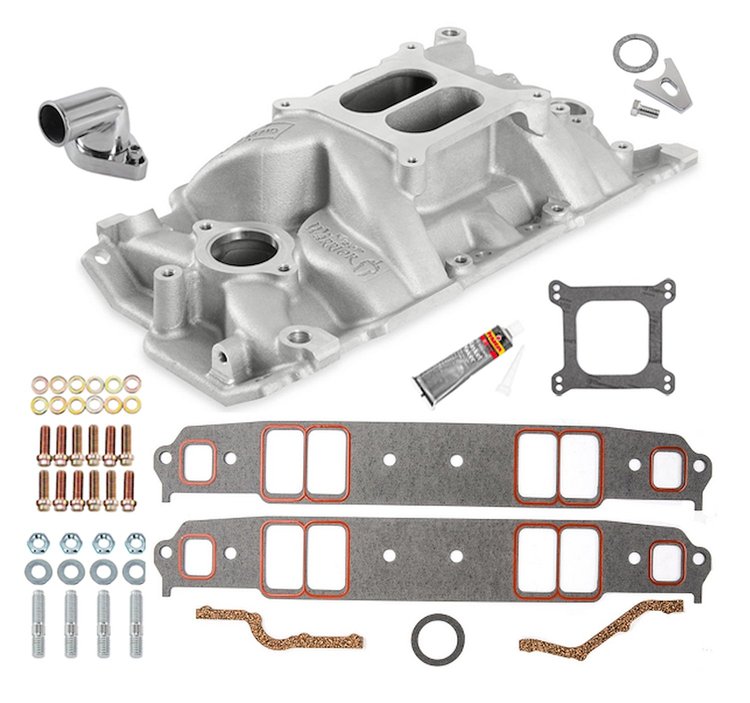

Weiand 8170WND Speed Warrior Small Block Chevy Intake Kit Includes:
- (1) 8170WND Speed Warrior Intake Manifold for 1987-1995 Chevy 262-400 w/ Cast Iron Heads - 8170WND
- 1987-1995 Chevy 262-400 with Cast Iron Heads
- Non-EGR
- Square Bore Carb Flange
- 1500-6700 RPM Range
- (1) JEGS Intake Manifold Gasket Set - 555-210002
- Small Block Chevy
- Port Size: 1.230 in. x 1.990 in. with Blocked Heat Crossover
- Thickness: .062 in.
- POZI Seal
- (1) JEGS Gray RTV 3.8 oz. Tube - 555-28036
- Temperature Resistant up to 625 degrees F
- Low Odor
- 3.8 oz. Tube
- (1) JEGS Carburetor Stud Kit [1 1/2 in. Long] - 555-15840
- 1 1/2 in. Long
- Suggested for use with Carburetor and Gasket (no spacer)
- Includes:
- (4) Studs (5/16 in.-24 Carburetor, 5/16 in.-18 Intake)
- (4) Washers
- (4) Nuts
- (1) JEGS 4-Barrel Carburetor Base Gasket [Square Flange] - 555-16100
- Square Flange
- Open
- 1/16 in. Thick
- (1) JEGS Chrome Distributor Hold-Down - 555-40691
- Small Block Chevy
- Big Block Chevy
- Includes:
- (1) Bolt
- (1) Distributor Gasket
- (1) JEGS 12-Point Intake Manifold Bolts - 555-83250
- Small Block Chevy (Except Vortec, LT & LS)
- Mopar (Except HEMI)
- AMC V8
- Gold Zinc Dichromate
- Includes:
- (12) 3/8 in.-16 x 1 in. Bolts
- (12) Tight Clearance Washers
- (1) JEGS Aluminum Thermostat Housing 90-degree Swivel Design - 555-51113
- For Small and Big Block Chevy
- 1 1/2 in. Hose Connection
- O-Ring Seal
- 90-degree Swivel Design
- Polished Aluminum Finish
- Includes Mounting Hardware
- (1) JEGS Vacuum Adapter Fitting - 555-16005
- 3/8" NPTM x Dual 1/8" NPTF Port
- Nickel Plated Brass
- Offers Multiple Options for Plumbing Intake Manifold Vacuum Lines
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Single plane performance from a new dual plane design!
Weiand recognized that today's engine technology has really advanced in the performance world with larger stroker motors, more efficient cylinder heads, and aggressive cam profiles. The outcome is their dual plane Speed Warrior Intake, which provides peak power without losing the low-end torque that's so important for drivability.
Show More
- Square bore carburetor flange
- Fully CNC-machined for a perfect fit
- Permanent mold casting process for lighter, smoother, and more consistent castings
- High-rise dual plane design builds maximum horsepower & torque for street/strip applications
- Some Speed Warrior Intakes have a raised plenum and runner design that separates the intake runners from the hot engine valley for the coolest, most dense fuel charge possible (plus race-inspired looks)
In addition, some of these manifolds feature Weiand's Everbright coating. Virtually maintenance-free, this polished finish is the product of vacuum metalizing technology and protective clear coating... looks good, lasts long.
JEGS Easy Kits are designed by JEGS professionals to help you get all the parts you need. Kits include Weiand Intake Manifold, Intake Gaskets, Intake Bolts, Carb Gasket, Carb Studs, and RTV Silicone Sealer.
