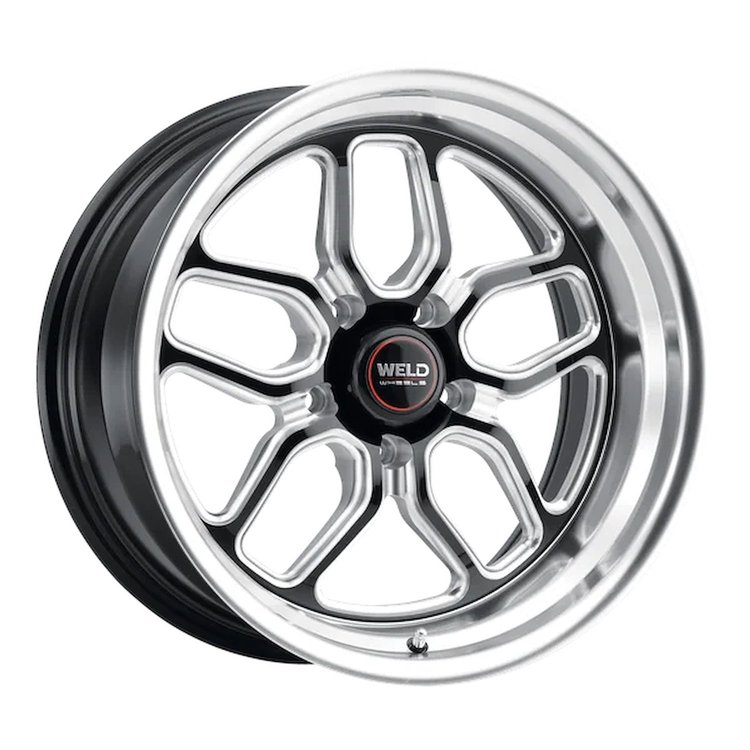

S10700563625 Laguna Series Wheel [Size: 20"x10.5"] Gloss Black Milled Finish
InfoVehicle Info Needed
WELD PERFORMANCEPART NUMBER: 952-S10700563625

S10700563625 Laguna Series Wheel [Size: 20"x10.5"] Gloss Black Milled Finish

$61500
ShippingShips on 09/14/2026
Lowest PriceLowest Price Guarantee

20" Diameter
Laguna Series Wheel
  • Size: 20"x10.5"
  • Bolt Pattern: 5 x 4 3/4"
  • Backspace: 6.25"
  • Offset: +13 mm
  • Hub Bore: 78.1 mm
  • Load: 1650 lbs.
  • Finish: Gloss Black Milled

    JEGS How to Measure Wheel Fitment: Click Here

    Weld Performance S10700563625 Features:

    • Wheel Series: Performance RF
    • Wheel Construction: 1-Piece
    • Wheel Diameter: 20 in.
    • Wheel Width: 10.5 in.
    • Wheel Fitment: Front/Rear
    • Center Cap Part#: 10S1014GBGBC

    Weld Performance S10700563625 Notes:

    • These wheels are machined for standard Acorn Style Lug Nuts and are sold separately (See Lug Nut Chart Below). A JEGS thin wall socket may be required for installation 555-W32902.
    • If desired, JEGS Spline Drive Acorn Style Lug Nuts are available (Click Here). These lug nuts require a JEGS thin wall spline drive socket for installation 555-65446 or 555-65460.
    • Part TypeWheel
    BrandWELD PERFORMANCE
    Package Height13.0
    Package Width22.0
    Package Length22.0
    Weight25.0 PG
    Part CategoryAccessories
    Wheel Size20 x 10.5 in.
    Load Rating (Lbs.)1650
    Quantity1
    Wheel FinishGloss Black Milled
    Bolt Pattern5 X 4.75 in.
    Back Spacing6.25 in.
    Offset13 mm
    Backspacing6.25 In.
    Center Bore Diameter78.1 mm
    Center Cap IncludedYes
    Load Rating1650 lbs.
    Wheel Bolt Pattern5 x 4 3/4 in.
    Wheel Diameter20 in.
    Wheel Offset13 mm
    Wheel TypeDrag Race Wheels
    Part FitmentUniversal
    Wheel Width10.5 in.
    Vendor Part NumberS10700563625
    Package Qty1
    Package TypeEA
