Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

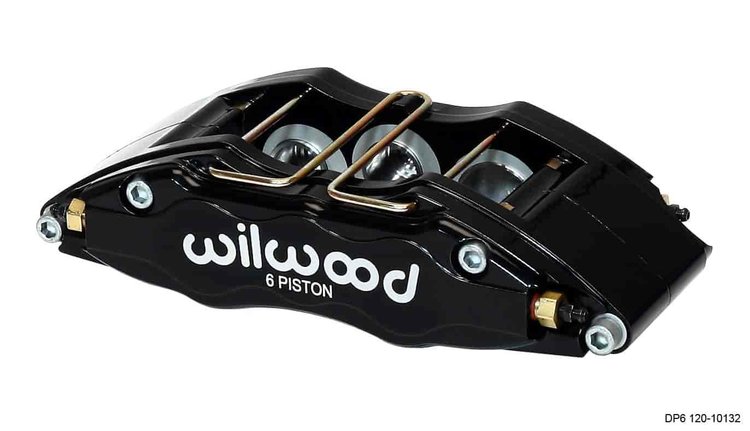

DP6 Billet Caliper
- DynaPro 6 Piston Billet Caliper
- Lug Mount
- 1.38'' / 1.00'' / 1.00'' Piston Bore Sizes
- 1.10'' Brake Disc Width
- Right Hand Mount
- Black Powder Coat Finish
Vehicle Applications Driving Enviroment Vehicle Sub-Types Application Duty Street Rods Heavy Duty Street Performance Domestic Heavy Duty Street Performance Import Heavy Duty Rally Medium Duty Road Race Medium Duty Late Model Dirt STARS, UMP, IMCA, etc... Heavy Duty Drag Racing Heavy Duty Northeast Modified Dirt or Pavement Medium Duty Open Wheel Sprint, Midget, etc...
Dirt or PavementMedium Duty Off Road Medium Duty Industrial Medium Duty Product Specifications Rotor Compatibility Rotor Width: 1.1' Maximum Rotor Width: 1.13' Minimum Rotor Width: 1.04' Maximum Rotor Diameter: 13.06' Minimum Rotor Diameter: 10' Brake Pad Specifications Brake Pad Type 1: 6712 Brake Pad Type 2: N/A Brake Pad Type 3: N/A Total Pad Area (in/sq): 7.3' Total Pad Volume (in/sq): 2.4' Piston Specifications Piston 1 Bore: 1.38' Piston 2 Bore: 1.0' Piston 3 Bore: 1.0' Piston 4 Bore: N/A Total Piston Area (in/sq): 3.08' Mounting Specifications Mount Type: Lug Mount Side: Right Hand Mount Center: 5.25' Mount Hole Size: 0.39' Mount Height: 2.03'
Part TypeDisc Brake Caliper
BrandWILWOOD
Package Height3.88
Package Width5.56
Package Length10.75
Weight4.6 PG
Part CategoryPerformance Parts
Caliper Piston QuantitySix
Caliper MaterialAluminum
Brake Pads IncludedNo
QuantitySold individually
Piston Diameter1.380/1.000
Fitting Attachment 1Female Threads
Rotor Thickness1.1 in (27.9 mm)
Caliper SeriesBillet DynaPro
Caliper LogoWilwood
Parking Brake ProvisionNo
Fittings IncludedNo
Brackets IncludedNo
Part FitmentSemi Universal
Caliper FinishBlack powdercoated
Vendor Part Number120-10132
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
