Vehicle Info NeededWILWOODPART NUMBER: 950-120-10754

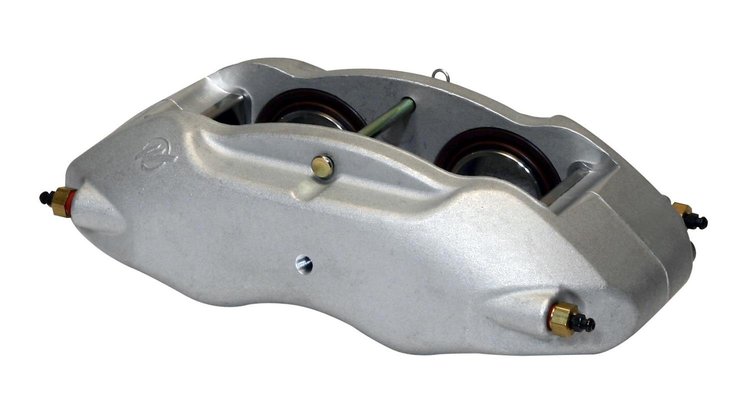

GNX4 4 Piston Forged Billet Caliper Lug Mount
$68332
Ships on 09/09/2026
Lowest Price GuaranteeBrake Calipers
- GNX4 4 Piston Forged Billet Caliper
- Lug Mount
- 1.88'' / 1.88'' Piston Bore Sizes
- 1.00'' Brake Disc Width
- Universal Left/Right Hand Mount
- Clear Anodized Finish
Product Specifications Rotor Compatibility Rotor Width: 1' Maximum Rotor Width: 1' Minimum Rotor Width: 0.88' Maximum Rotor Diameter: 13.06' Minimum Rotor Diameter: 11.75' Brake Pad Specifications Brake Pad Type 1: 9115 Brake Pad Type 2: N/A Brake Pad Type 3: N/A Total Pad Area (in/sq): 4.07' Total Pad Volume (in/sq): 11.15' Piston Specifications Piston 1 Bore: 1.88' Piston 2 Bore: 1.88' Piston 3 Bore: N/A Piston 4 Bore: N/A Total Piston Area (in/sq): 5.56' Mounting Specifications Mount Type: Lug Mount Side: Universal Mount Center: 7' Mount Hole Size: 0.45' Mount Height: 2.41'
Part TypeDisc Brake Caliper
BrandWILWOOD
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number120-10754
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
