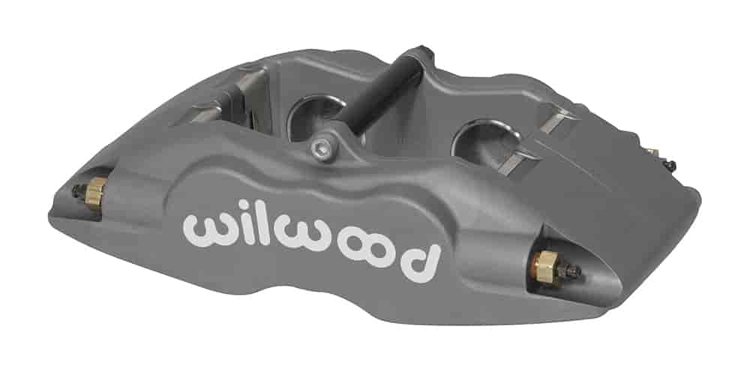

Forged Superlite Internal FSLI Brake Caliper Lug Mount

Name: Forged Superlite Internal FSLI Brake Caliper Lug Mount
Brand: WILWOOD
SKU: 950-120-11138
Price: 264.90 USD
Availability: InStock

^$264⁹⁰

More than 10 available

Ships Today

Lowest Price Guarantee

FSLI Brake Calipers

Lug Mount
Stainless Steel Pistons
1.88'' / 1.75'' Piston Bore Sizes
0.81'' Brake Disc Width
Left Hand Mount

Type III Hard Anodized Finish

Product Specifications
Rotor Compatibility
Rotor Width:	0.81'
Maximum Rotor Width:	0.84'
Minimum Rotor Width:	0.75'
Maximum Rotor Diameter:	13.06'
Minimum Rotor Diameter:	11.75'
Brake Pad Specifications
Brake Pad Type 1:	7420
Brake Pad Type 2:	N/A
Brake Pad Type 3:	N/A
Total Pad Area (in/sq):	8.2'
Total Pad Volume (in/sq):	4.9'
Piston Specifications
Piston 1 Bore:	1.88'
Piston 2 Bore:	1.75'
Piston 3 Bore:	N/A
Piston 4 Bore:	N/A
Total Piston Area (in/sq):	5.18'
Mounting Specifications
Mount Type:	Lug
Mount Side:	Left Hand
Mount Center:	3.5'
Mount Hole Size:	0.45'
Mount Height:	2.85'

Part TypeDisc Brake Caliper

BrandWILWOOD

Package Height5.0

Package Width6.5

Package Length11.0

Weight5.155 PG

Part CategoryPerformance Parts

Caliper Piston QuantityFour

Caliper MaterialAluminum

Brake Pads IncludedNo

QuantitySold individually

Piston Diameter1.88 in (47.8 mm)

Rotor Thickness0.81 in (20.6 mm)

Caliper SeriesFSLI

Caliper LogoWilwood

Parking Brake ProvisionNo

Fittings IncludedYes

Brackets IncludedNo

Part FitmentSemi Universal

Caliper FinishBlack anodized

Vendor Part Number120-11138

Package Qty1

Package TypeEA

No Questions

No Reviews

Some parts are not legal for use in California or other states with similar laws / regulations
