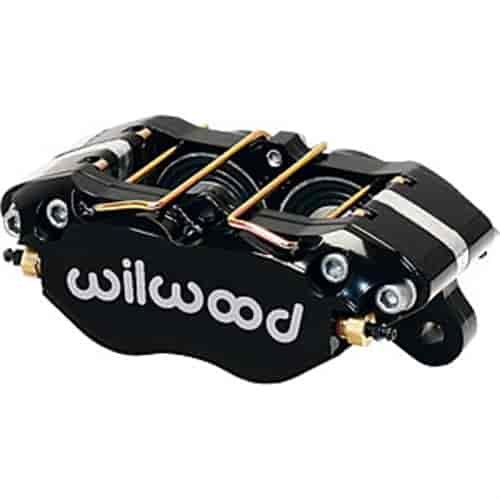

Vehicle Info NeededDynaPro Dust Boot 4 Piston Billet Caliper Lug Mount
Ships on 09/09/2026
Lowest Price Guarantee- DynaPro Dust Boot 4 Piston Billet Caliper
- Lug Mount
- 1.38'' / 1.38'' Piston Bore Sizes
- 0.81'' Brake Disc Width
- Universal Left/Right Mount
- Black Powder Coat Finish
Product Specifications Rotor Compatibility Rotor Width: 0.81' Maximum Rotor Width: 0.83' Minimum Rotor Width: 0.75' Maximum Rotor Diameter: 13.06' Minimum Rotor Diameter: 10' Brake Pad Specifications Brake Pad Type 1: 7812 Brake Pad Type 2: N/A Brake Pad Type 3: N/A Total Pad Area (in/sq): 6.36' Total Pad Volume (in/sq): 2.1' Piston Specifications Piston 1 Bore: 1.38' Piston 2 Bore: 1.38' Piston 3 Bore: N/A Piston 4 Bore: N/A Total Piston Area (in/sq): 3.00' Mounting Specifications Mount Type: Lug Mount Side: Universal Right / Left Hand Mount Center: 5.25' Mount Hole Size: 0.39' Mount Height: 2.1'
Legendary DynaPro Performance
With a Dust Booted Piston!
Wilwood designed the Dynapro Dust-Boot (DP-DB) caliper for vehicles that require or prefer a dust-booted piston. Dust-booted aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. The pistons are clear anodized to eliminate corrosion while providing added lubricity for drag-free operation within the bores. The dust boots work in conjunction with high-temperature square faced internal seals in the caliper bores to provide optimum performance, ultimate reliability, and quick turn around at pad service intervals.
Show More
 |
The strength of the DynaPro caliper is a combination of process and design. The DynaPro is stress-flow forged from premium grade billet. Stress-flow forging realigns the grain structure of the metal within the contour of the body design. This process produces a part with superior strength over parts simply machined from straight grained blocks of billet. The FEA generated body design incorporates a highly fortified radial transition that eliminates steps and shoulders between the piston housings and the bridges. Incorporating a radius in this critical area substantially increases resistance to deflection and caliper body separation under load. Structural deflection and volume displacement testing have proven the efficiency of this innovative design. Reductions in overall deflection, and the subsequent decreases in fluid volume displacement, translate to increased clamping efficiency with less pedal travel. The bottom line is a firm, responsive pedal with outstanding stopping power.
The DynaPro is loaded with other enhancements for performance and durability. The calipers feature Quick-E-Clip pad retainers that support a 7812 type brake pad from the top. Not only does it allow for fast pad service without caliper removal, the bottom pad supports have been removed to create a slimmer profile that can be more easily fitted into tight clearance applications. An optional bridge bolt kit, P/N 230-10188 is also available to provide additional body strength and fortified pad retention in the center of the caliper bridge for extreme high pressure, high load applications.
Heavy wall Aluminum pistons are used to resist corrosion. The heavy wall sectional thickness also provides additional strength against backside deflection to provide a firm pedal feel and efficient clamping, even at the high pressures generated by power boost systems.
- Developed for applications that require or prefer a dust-booted piston
- The dust boots work in conjunction with high temperature seals to provide ultimate reliability
- Features Quick-E-Clip pad retainers that allow for fast pad service without caliper removal
- Optional bridge bolt kit for high load applications
- Lightweight at only 3.8 pounds
