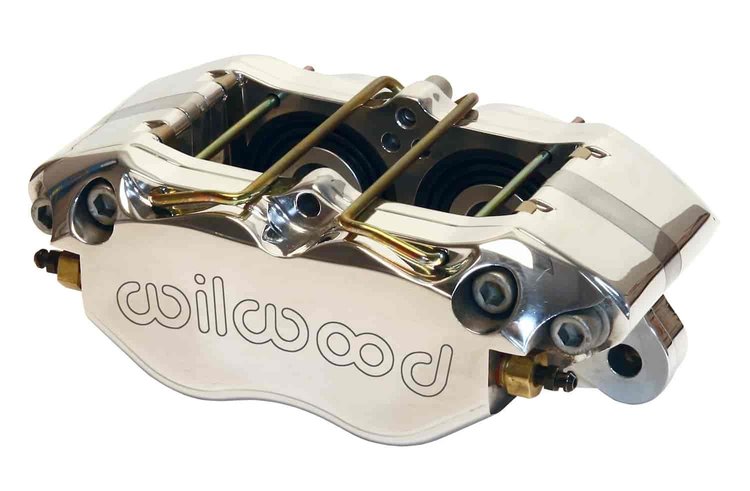

DP-DB Billet Caliper1.38'' / 1.38'' Piston Bore Sizes 0.81'' Brake Disc Width
- DynaPro Dust Boot 4 Piston Billet Caliper
- Lug Mount
- 1.38'' / 1.38'' Piston Bore Sizes
- 0.81'' Brake Disc Width
- Universal Left/Right Mount
- Polished Finish
Product Specifications Rotor Compatibility Rotor Width: 0.81' Maximum Rotor Width: 0.83' Minimum Rotor Width: 0.75' Maximum Rotor Diameter: 13.06' Minimum Rotor Diameter: 10' Brake Pad Specifications Brake Pad Type 1: 7812 Brake Pad Type 2: N/A Brake Pad Type 3: N/A Total Pad Area (in/sq): 6.36' Total Pad Volume (in/sq): 2.1' Piston Specifications Piston 1 Bore: 1.38' Piston 2 Bore: 1.38' Piston 3 Bore: N/A Piston 4 Bore: N/A Total Piston Area (in/sq): 3.00' Mounting Specifications Mount Type: Lug Mount Side: Universal Right / Left Hand Mount Center: 5.25' Mount Hole Size: 0.39' Mount Height: 2.1'
Part TypeDisc Brake Caliper
BrandWILWOOD
Package Height3.8
Package Width5.4
Package Length8.2
Weight3.46 PG
Part CategoryPerformance Parts
Caliper Piston QuantityFour
Caliper MaterialAluminum
Brake Pads IncludedNo
QuantitySold individually
Piston Diameter1.38 in (35.1 mm)
Fitting Attachment 1Female Threads
Rotor Thickness0.81 in (20.6 mm)
Caliper SeriesDynaPro Lug Mount
Caliper LogoWilwood
Parking Brake ProvisionNo
Fittings IncludedNo
Brackets IncludedNo
Caliper FinishPolished
Vendor Part Number120-11481-P
Package Qty1
Package TypeEA
