Vehicle Info NeededWILWOODPART NUMBER: 950-120-11644

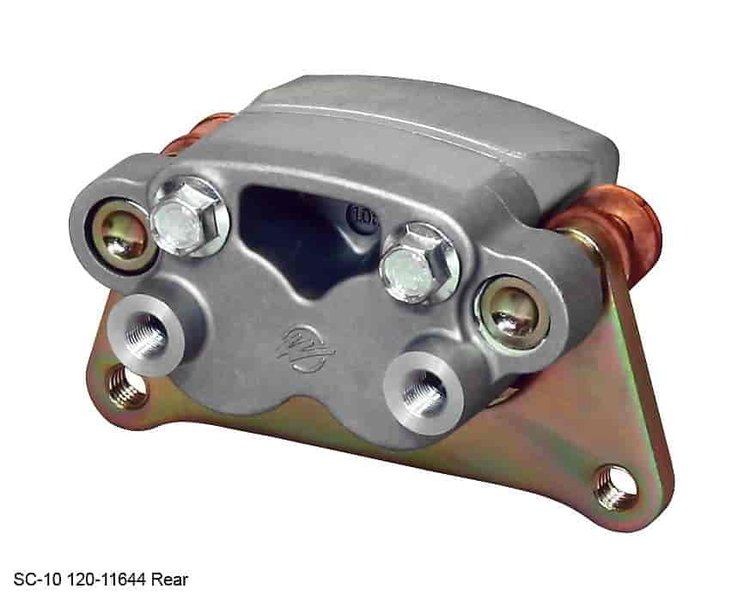

SC10 Series 2 Piston Brake Caliper Floating Mount
$12299
Ships on 09/08/2026
Lowest Price GuaranteeTwo Piston Caliper
- SC10 Series 2 Piston Brake Caliper
- Floating Mount
- 1.06'' / 1.06'' Piston Bore Sizes
- 0.25'' Brake Disc Width
Vehicle Applications Driving Enviroment Vehicle Sub-Types Application Duty Power Sports ATV, Snowmobile Medium Duty Industrial Medium Duty Product Specifications Rotor Compatibility Rotor Width: 0.25' Maximum Rotor Width: 0.25' Minimum Rotor Width: 0.15' Maximum Rotor Diameter: 9.0' Minimum Rotor Diameter: 6.5' Brake Pad Specifications Brake Pad Type 1: 6407 Brake Pad Type 2: N/A Brake Pad Type 3: N/A Total Pad Area (in/sq): 1.7' Total Pad Volume (in/sq): 0.26' Piston Specifications Piston 1 Bore: 1.06' Piston 2 Bore: 1.06 Piston 3 Bore: N/A Piston 4 Bore: N/A Total Piston Area (in/sq): 1.06' Mounting Specifications Mount Type: Floating Mount Side: Universal Mount Center: 4.3' Mount Hole Size: N/A Mount Height: 1.72'
Part TypeDisc Brake Caliper
BrandWILWOOD
Package Height3.4
Package Width5.6
Package Length6.7
Weight2.29 PG
Part CategoryPerformance Parts
Piston Diameter1.06 in (26.9 mm)
Part FitmentSemi Universal
Rotor Thickness0.25 in (6.4 mm)
Vendor Part Number120-11644
Package Qty1
Package TypeEA
