Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

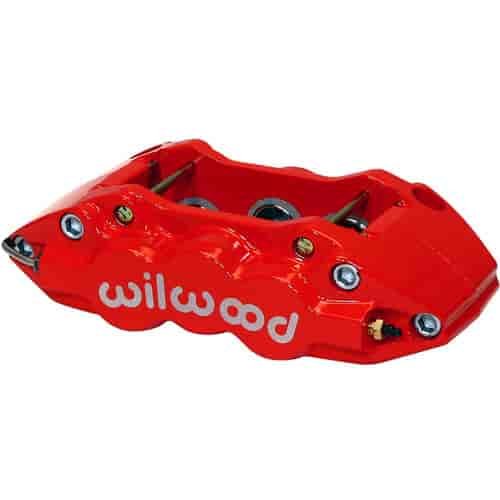

W6A Brake CalipersStainless Steel Pistons 1.75'' / 1.38'' / 1.38'' Piston Bore Sizes 1.25'' Brake Disc Width
- W6A 6 Piston Brake Caliper
- Radial Mount
- Stainless Steel Pistons
- 1.75'' / 1.38'' / 1.38'' Piston Bore Sizes
- 1.25'' Brake Disc Width
- Right Hand, Rear-of-Rotor Mount
- Red Powder Coat Finish
Product Specifications Rotor Compatibility Rotor Width: 1.25' Maximum Rotor Width: 1.28' Minimum Rotor Width: 1.1' Maximum Rotor Diameter: 15' Minimum Rotor Diameter: 12.19' Brake Pad Specifications Brake Pad Type 1: 6617 Brake Pad Type 2: N/A Brake Pad Type 3: N/A Total Pad Area (in/sq): 11' Total Pad Volume (in/sq): 5.2' Piston Specifications Piston 1 Bore: 1.75' Piston 2 Bore: 1.38' Piston 3 Bore: 1.38' Piston 4 Bore: N/A Total Piston Area (in/sq): 5.40' Mounting Specifications Mount Type: Radial Mount Side: Right Hand Mount Center: 7.09' Mount Hole Size: 0.45' Mount Height: 2.09'
Part TypeDisc Brake Caliper
BrandWILWOOD
Package Height3.6
Package Width7.1
Package Length12.6
Weight6.88 PG
Part CategoryPerformance Parts
Caliper Piston QuantitySix
Caliper MaterialAluminum
Brake Pads IncludedNo
QuantitySold individually
Piston Diameter1.750/1.380
Fitting Attachment 1Female Threads
Rotor Thickness1.25 in (31.8 mm)
Caliper SeriesW6A Radial Mount
Caliper LogoWilwood
Parking Brake ProvisionNo
Fittings IncludedNo
Brackets IncludedNo
Part FitmentSemi Universal
Caliper FinishRed powdercoated
Vendor Part Number120-11661RSR
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
