Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

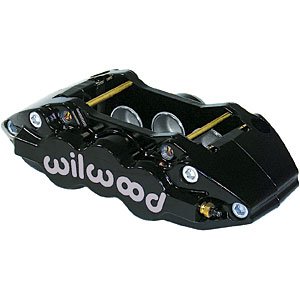

W6A Brake CalipersStainless Steel Pistons 1.75'' / 1.38'' / 1.38'' Piston Bore Sizes 1.25'' Brake Disc Width
- W6A 6 Piston Brake Caliper
- Radial Mount
- Stainless Steel Pistons
- 1.75'' / 1.38'' / 1.38'' Piston Bore Sizes
- 1.25'' Brake Disc Width
- Left Hand, Rear-of-Rotor Mount
- Black Powder Coat Finish
Product Specifications Rotor Compatibility Rotor Width: 1.25' Maximum Rotor Width: 1.28' Minimum Rotor Width: 1.1' Maximum Rotor Diameter: 15' Minimum Rotor Diameter: 12.19' Brake Pad Specifications Brake Pad Type 1: 6617 Brake Pad Type 2: N/A Brake Pad Type 3: N/A Total Pad Area (in/sq): 11' Total Pad Volume (in/sq): 5.2' Piston Specifications Piston 1 Bore: 1.75' Piston 2 Bore: 1.38' Piston 3 Bore: 1.38' Piston 4 Bore: N/A Total Piston Area (in/sq): 5.40' Mounting Specifications Mount Type: Radial Mount Side: Left Hand Mount Center: 7.09' Mount Hole Size: 0.45' Mount Height: 2.09'
Part TypeDisc Brake Caliper
BrandWILWOOD
Package Width7.6
Weight7.6 PG
Part CategoryPerformance Parts
Caliper Piston QuantitySix
Caliper MaterialAluminum
Brake Pads IncludedNo
QuantitySold individually
Piston Diameter1.750/1.380
Fitting Attachment 1Female Threads
Rotor Thickness1.25 in (31.8 mm)
Caliper SeriesW6A Radial Mount
Caliper LogoWilwood
Parking Brake ProvisionNo
Fittings IncludedNo
Brackets IncludedNo
Caliper FinishBlack anodized
Vendor Part Number120-11662-RS
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
