Made in USA

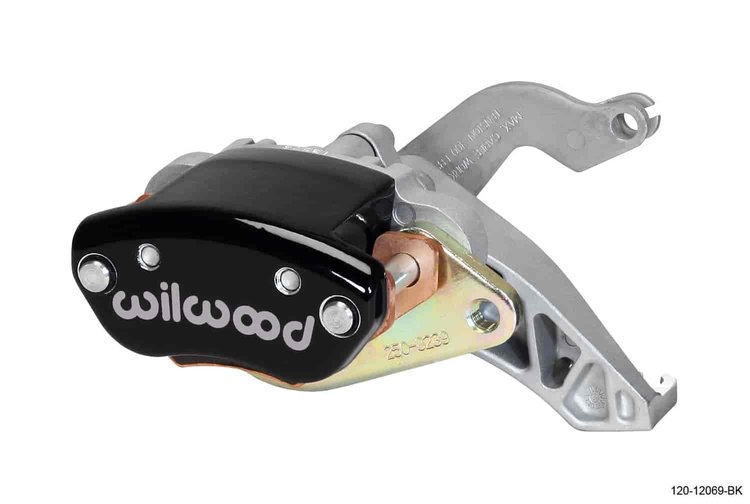

MC4 Parking Brake Caliper Mechanical
InfoVehicle Info Needed
WILWOODPART NUMBER: 950-120-12069-BK

MC4 Parking Brake Caliper Mechanical

$17156
3 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

MC4 Parking Brake Calipers
    MC4 Parking Brake Caliper
  • Mechanical
  • Right
  • Black

    Wilwood MC4 Mechanical Parking Brake Calipers are a multi-use, cable operated brake caliper that combines high output performance with simplicity in design and construction. It is the perfect solution for vehicle applications requiring a separate mechanically actuated parking brake caliper. The MC4 Caliper combines an efficient die cast body with a forged billet anvil for superior strength under load, yet is lightweight at only 3.30 (2.95 without pads) pounds. They are built to accept rotors that are .810" thick, with 11.00" - 12.88" diameter range. Each caliper includes Composite Metallic high-friction, high static-hold brake pads, and are pre-fitted with noise cancelling shields.

    Show More

    Wilwood MC2 Mechanical Calipers are an efficient, multi-use cable operated brake caliper which combines high output performance with simplicity in design and construction. This lightweight, high strength die cast caliper operates in a fixed mount position and requires no additional external return springs. Perfect for Yard Karts, Industrial and Commercial applications.

Part TypeDisc Brake Caliper
Product LineWilwood MC Series Mechanical Brake Calipers
BrandWILWOOD
Package Height6.0
Package Width6.5
Package Length6.9
Weight3.68 PG
Part CategoryPerformance Parts
Caliper Piston QuantityOne
Caliper MaterialAluminum
Brake Pads IncludedNo
QuantitySold individually
Piston Diameter1.19 in (30.2 mm)
Rotor Thickness0.81 in (20.6 mm)
Caliper SeriesMC4
Caliper LogoWilwood
Parking Brake ProvisionYes
Fittings IncludedNo
Brackets IncludedYes
Part FitmentSemi Universal
Caliper FinishBlack anodized
Bracket FinishNatural
Bracket MaterialAluminum
Vendor Part Number120-12069-BK
Package Qty1
Package TypeEA
