Vehicle Info NeededWILWOODPART NUMBER: 950-120-12160

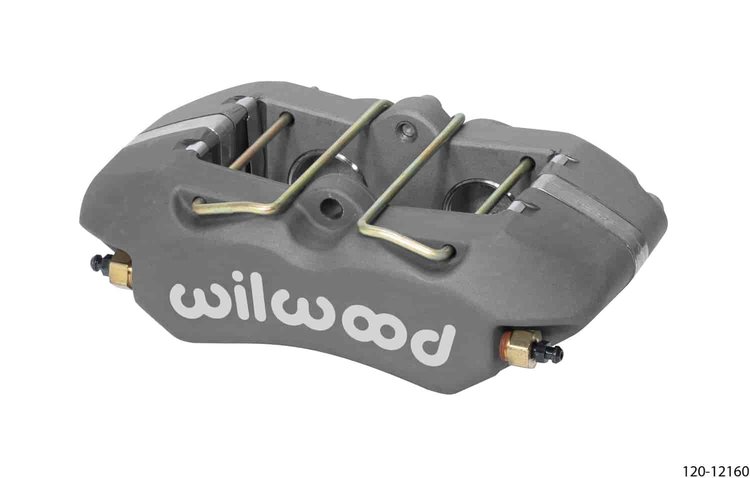

Forged DynaPro Low-Profile 4 Piston Billet Caliper Lug Mount
$19472
Ships on 09/14/2026
Lowest Price GuaranteeFDP-LP Billet Calipers
- Forged DynaPro Low-Profile 4 Piston Billet Caliper
- Lug Mount
- 1.12'' / 1.12'' Piston Bore Sizes
- 0.81'' Brake Disc Width
- Universal Left/Right Mount
- Black Anodized Finish
Product Specifications Rotor Compatibility Rotor Width: 0.81' Maximum Rotor Width: 0.83' Minimum Rotor Width: 0.75' Maximum Rotor Diameter: 11' Minimum Rotor Diameter: 11' Brake Pad Specifications Brake Pad Type 1: 4812 Brake Pad Type 2: N/A Brake Pad Type 3: N/A Total Pad Area (in/sq): 5.1" Total Pad Volume (in/sq): 1.71" Piston Specifications Piston 1 Bore: 1.12' Piston 2 Bore: 1.12' Piston 3 Bore: N/A Piston 4 Bore: N/A Total Piston Area (in/sq): 1.98' Mounting Specifications Mount Type: Lug Mount Side: Universal Right / Left Hand Mount Center: 5.25' Mount Hole Size: 0.39' Mount Height: 2.1' Inlet Thread Size: 1/8"-27 NPT
Part TypeDisc Brake Caliper
BrandWILWOOD
Package Height3.9
Package Width5.4
Package Length8.3
Weight3.45 PG
Part CategoryPerformance Parts
Caliper Piston QuantityFour
Caliper MaterialAluminum
Brake Pads IncludedNo
QuantitySold individually
Piston Diameter1.12 in (28.4 mm)
Fitting Attachment 1Female Threads
Rotor Thickness0.81 in (20.6 mm)
Caliper SeriesForged Dynapro Low-Profile Lug Mount
Caliper LogoWilwood
Parking Brake ProvisionNo
Fittings IncludedNo
Brackets IncludedNo
Part FitmentSemi Universal
Caliper FinishBlack anodized
Vendor Part Number120-12160
Package Qty1
Package TypeEA
