Vehicle Info NeededWILWOODPART NUMBER: 950-120-12160-P

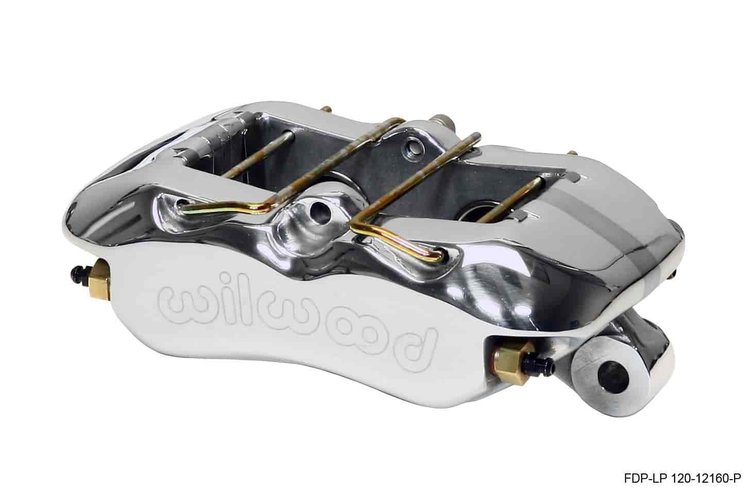

Forged DynaPro Low-Profile 4 Piston Billet Caliper Lug Mount
$37345
Ships Tomorrow
Lowest Price GuaranteeFDP-LP Billet Calipers
- Forged DynaPro Low-Profile 4 Piston Billet Caliper
- Lug Mount
- 1.12'' / 1.12'' Piston Bore Sizes
- 0.81'' Brake Disc Width
- Universal Left/Right Mount
- Polished Finish
Product Specifications Rotor Compatibility Rotor Width: 0.81' Maximum Rotor Width: 0.83' Minimum Rotor Width: 0.75' Maximum Rotor Diameter: 11' Minimum Rotor Diameter: 11' Brake Pad Specifications Brake Pad Type 1: 4812 Brake Pad Type 2: N/A Brake Pad Type 3: N/A Total Pad Area (in/sq): 5.1" Total Pad Volume (in/sq): 1.71" Piston Specifications Piston 1 Bore: 1.12' Piston 2 Bore: 1.12' Piston 3 Bore: N/A Piston 4 Bore: N/A Total Piston Area (in/sq): 1.98' Mounting Specifications Mount Type: Lug Mount Side: Universal Right / Left Hand Mount Center: 5.25' Mount Hole Size: 0.39' Mount Height: 2.1' Inlet Thread Size: 1/8"-27 NPT
Part TypeDisc Brake Caliper
BrandWILWOOD
Package Height4.3
Package Width5.85
Package Length8.95
Weight3.48 PG
Part CategoryPerformance Parts
Piston Diameter1.12 in (28.4 mm)
Part FitmentSemi Universal
Rotor Thickness0.81 in (20.6 mm)
Vendor Part Number120-12160-P
Package Qty1
Package TypeEA
