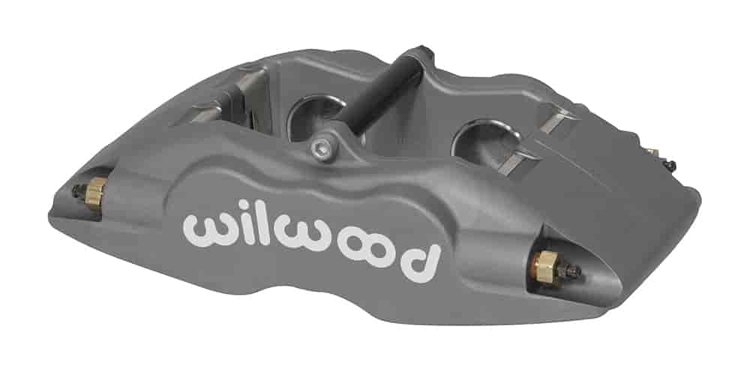

Forged Superlite Internal FSLI/ST Brake Caliper Lug Mount

Name: Forged Superlite Internal FSLI/ST Brake Caliper Lug Mount
Brand: WILWOOD
SKU: 950-120-13156
Price: 442.13 USD
Availability: InStock

^$442¹³

Ships on Sep 11, 2026

Lowest Price Guarantee

FSLI/ST Brake Calipers

Lug Mount
Thermolock Pistons
1.88'' / 1.75'' Piston Bore Sizes
0.81'' Brake Disc Width
Left Hand Mount

Type III Hard Anodized Finish

Product Specifications
Rotor Compatibility
Rotor Width:	0.81'
Maximum Rotor Width:	0.84'
Minimum Rotor Width:	0.75'
Maximum Rotor Diameter:	13.06'
Minimum Rotor Diameter:	11.75'
Brake Pad Specifications
Brake Pad Type 1:	7420
Brake Pad Type 2:	N/A
Brake Pad Type 3:	N/A
Total Pad Area (in/sq):	8.2'
Total Pad Volume (in/sq):	4.9'
Piston Specifications
Piston 1 Bore:	1.88'
Piston 2 Bore:	1.75'
Piston 3 Bore:	N/A
Piston 4 Bore:	N/A
Total Piston Area (in/sq):	5.18'
Mounting Specifications
Mount Type:	Lug
Mount Side:	Left Hand
Mount Center:	3.5'
Mount Hole Size:	0.45'
Mount Height:	2.85'

Part TypeDisc Brake Caliper

BrandWILWOOD

Package Height4.69

Package Width6.31

Package Length9.88

Weight5.2 PG

Part CategoryPerformance Parts

Caliper Piston QuantityFour

Caliper MaterialAluminum

Brake Pads IncludedNo

QuantitySold individually

Piston Diameter1.880/1.750

Fitting Attachment 1Female Threads

Rotor Thickness0.81 in (20.6 mm)

Caliper SeriesFSLI

Caliper LogoWilwood

Parking Brake ProvisionNo

Fittings IncludedNo

Brackets IncludedNo

Part FitmentSemi Universal

Caliper FinishBlack anodized

Vendor Part Number120-13156

Package Qty1

Package TypeEA
