Vehicle Info NeededForged Superlite 4R Caliper
Ships on Sep 08, 2026
Lowest Price Guarantee- Forged Superlite 4R Caliper

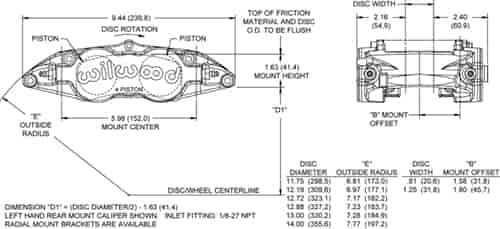

- 5.98'' Radial Universal Mount
- Stainless Piston 1 & 2 Diameter: 1.25'' & 1.25''
- Rotor Width: 1.25''
- Includes Dust Boot
- Black Finish
The Superlite 4R caliper series are the benchmark in asphalt short track, late model, modified and open wheel competition. They also enjoys prominence in a variety of road-race, rally and sport driving applications. They have been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes. The transfer tubes have been replaced with two additional bleed screw assemblies which allow symmetrical piston bore models to be mounted either right or left in a leading or trailing position. Differential bore models still require left hand and right hand orientation, but no leading or trailing configuration is necessary.
Show More
The most noteworthy feature of all the FSL4R caliper models is the exceptional strength and reduced weight of the forging. With the calipers assembled, they weigh just at 4.4 pounds, and the caliper body design in itself is a product of computer generated solid modeling and stress analysis technology. The FSL4R calipers features closed end bridges with a radial transition down to the main body and piston bore housings. The elimination of machined steps and sharp shoulders in this critical area provides a measurable increase in overall body strength and resistance to deflection under load. Every FSL4R body is stress-flow forged from a premium grade aluminum alloy billet.
