Vehicle Info NeededWILWOODPART NUMBER: 950-120-13237

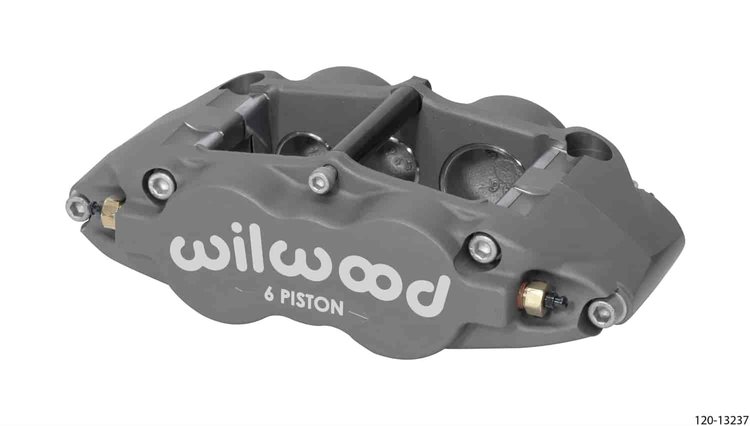

FSL6R 6 Piston Brake Caliper Radial Mount
$32745
4 left in stock
Ships Today
Lowest Price GuaranteeFSL6R Brake Calipers
- FSL6R 6 Piston Brake Caliper
- Radial Mount
- Stainless Steel Pistons
- 1.62'' / 1.12'' / 1.12'' Piston Bore Sizes
- 0.81'' Brake Disc Width
- Right Hand
- Anodized Finish
Vehicle Applications Driving Enviroment Vehicle Sub-Types Application Duty Street Rods Heavy Duty Street Performance Domestic Heavy Duty Street Performance Import Heavy Duty Rally Medium Duty Road Race Medium Duty Late Model Asphalt ASA, All Pro, SW Tour, etc... Medium Duty Stock Cars NASCAR, BGN, CTS, ARCA, etc... Medium Duty Late Model Dirt STARS, UMP, IMCA, etc... Heavy Duty Northeast Modified Dirt or Pavement Heavy Duty Open Wheel Sprint, Midget, etc...
Dirt or PavementHeavy Duty Off Road Heavy Duty Industrial Heavy Duty Product Specifications Rotor Compatibility Rotor Width: 0.81' Maximum Rotor Width: 0.9' Minimum Rotor Width: 0.75' Maximum Rotor Diameter: 14.00' Minimum Rotor Diameter: 11.75' Brake Pad Specifications Brake Pad Type 1: 7420 Brake Pad Type 2: N/A Brake Pad Type 3: N/A Total Pad Area (in/sq): 8.2' Total Pad Volume (in/sq): 4.9' Piston Specifications Piston 1 Bore: 1.62' Piston 2 Bore: 1.12' Piston 3 Bore: 1.12' Piston 4 Bore: N/A Total Piston Area (in/sq): 4.04' Mounting Specifications Mount Type: Radial Mount Side: Right Hand Mount Center: 5.98' Mount Hole Size: 0.39' Mount Height: 1.62'
Top-Notch Performance Brake Systems
Wilwood's Billet Superlite 6R (SL6R) furthers the legendary Superlite caliper series by adding the ease and versatility of the radial mount design. Radial mounting simplifies installation and gives you a couple of adjustment planes for accurate alignment over the disc. Wilwood integrated ''Big Brake'' technology to produce unmatched stopping power in extreme conditions in a wide variety of competition vehicles.
Part TypeDisc Brake Caliper
Product LineWilwood SL6R 6 Piston Radial Mount Billet Aluminum Brake Caliper
BrandWILWOOD
Package Height6.5
Package Width6.9
Package Length11.2
Weight5.39 PG
Part CategoryPerformance Parts
Piston Diameter1.620/1.120/1.120
Part FitmentSemi Universal
Rotor Thickness0.81 in (20.6 mm)
Vendor Part Number120-13237
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
