Vehicle Info NeededWILWOODPART NUMBER: 950-120-14331

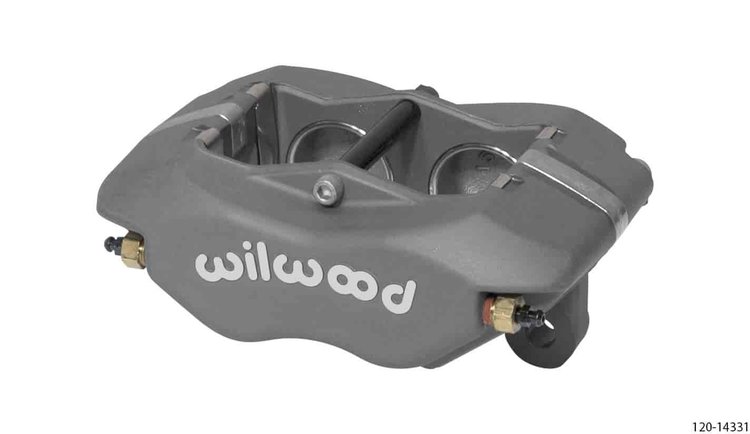

Narrow Dynalite 4 Piston Billet Caliper Lug Mount
$18424
Ships on 09/09/2026
Lowest Price GuaranteeFNDL Billet Caliper1.62'' / 1.62'' Piston Bore Sizes 0.81'' Brake Disc Width
- Narrow Dynalite 4 Piston Billet Caliper
- Lug Mount
- 1.62'' / 1.62'' Piston Bore Sizes
- 0.81'' Brake Disc Width
- Universal Left/Right Mount
- Black Anodized Finish
Product Specifications Rotor Compatibility Rotor Width: 0.81' Maximum Rotor Width: 0.81' Minimum Rotor Width: 0.75' Maximum Rotor Diameter: 12.72' Minimum Rotor Diameter: 11.75' Brake Pad Specifications Brake Pad Type 1: 7816 Brake Pad Type 2: 7216 Brake Pad Type 3: N/A Total Pad Area (in/sq): 6.36' Total Pad Volume (in/sq): 3' Piston Specifications Piston 1 Bore: 1.62' Piston 2 Bore: 1.62' Piston 3 Bore: N/A Piston 4 Bore: N/A Total Piston Area (in/sq): 4.12' Mounting Specifications Mount Type: Lug Mount Side: Universal Right / Left Hand Mount Center: 3.50' Mount Hole Size: 0.45' Mount Height: 2.85'
Part TypeDisc Brake Caliper
BrandWILWOOD
Package Height4.38
Package Width5.57
Package Length8.25
Weight3.8 PG
Part CategoryPerformance Parts
Piston Diameter1.620/1.620
Part FitmentSemi Universal
Rotor Thickness0.81 in (20.6 mm)
Vendor Part Number120-14331
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
