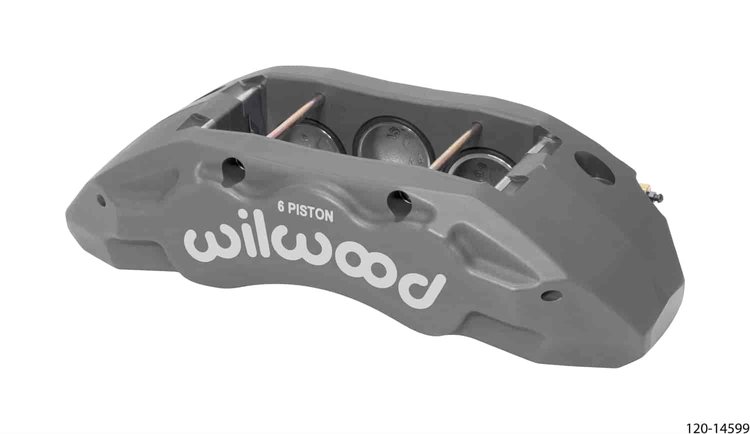

TX6R Forged Caliper

• 1.75' / 1.62' / 1.62' Piston Bore Sizes
• 1.38' Brake Disc Width



  Product Specifications
  Rotor Compatibility
  Rotor Width:	1.38'
  Maximum Rotor Width:	1.38'
  Minimum Rotor Width:	1.30'
  Maximum Rotor Diameter:	16.00'
  Minimum Rotor Diameter:	14.25'
  Brake Pad Specifications
  Brake Pad Type 1:	10120
  Brake Pad Type 2:	N/A
  Brake Pad Type 3:	N/A
  Total Pad Area (in/sq):	12.69'
  Total Pad Volume (in/sq):	6.81'
  Piston Specifications
  Piston 1 Bore:	1.62'
  Piston 2 Bore:	1.38'
  Piston 3 Bore:	1.38'
  Piston 4 Bore:	N/A
  Total Piston Area (in/sq):	5.06'
  Mounting Specifications
  Mount Type:	Radial
  Mount Side:	Right Hand
  Mount Center:	9.63'
  Mount Hole Size:	N/A
  Mount Height:	3.07'
