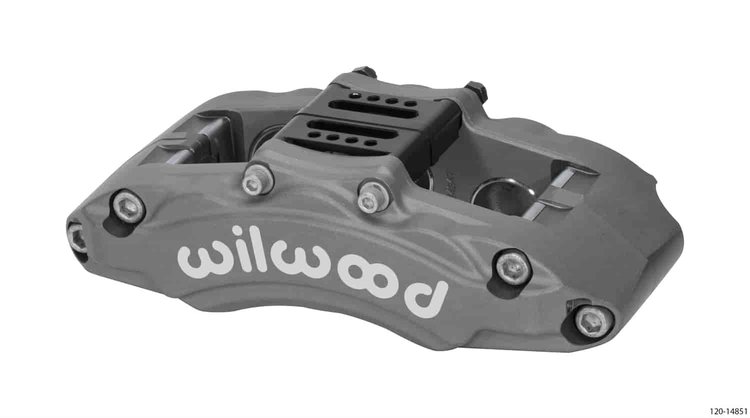

AT6 Forged Lug Mount Caliper Type III Hard Anodized

Name: AT6 Forged Lug Mount Caliper Type III Hard Anodized
Brand: WILWOOD
SKU: 950-120-14851
Price: 783.42 USD
Availability: InStock

^$783⁴²

Ships on 09/10/2026

Lowest Price Guarantee

Left-Hand Mount

1.750 in. / 1.380 in. / 1.380 in. Piston Bore Sizes
0.720 in. Rotor Width
Left-Hand Mount

Type III Hard Anodized Finish

Product Specifications
Rotor Compatibility
Rotor Width:	0.720 in.
Maximum Rotor Width:	0.720 in.
Minimum Rotor Width:	0.660 in.
Maximum Rotor Diameter:	12.300 in.
Minimum Rotor Diameter:	12.300 in.
Brake Pad Specifications
Brake Pad Type 1:	7516
Brake Pad Type 2:	N/A
Brake Pad Type 3:	N/A
Total Pad Area (in/sq):	11.310 in.²
Total Pad Volume (in/sq):	5 in.³
Piston Specifications
Piston 1 Bore:	1.750 in.
Piston 2 Bore:	1.380 in.
Piston 3 Bore:	1.380 in.
Piston 4 Bore:	N/A
Total Piston Area (in/sq):	5.400 in.
Mounting Specifications
Mount Type:	Lug
Mount Side:	Left Hand
Mount Center:	6.880 in.
Mount Hole Size:	0.390 in.
Mount Height:	2.620 in.

Tough Enough for Baja!

Wilwood AT6 Lug Mount Calipers combine a forged aluminum construction with Wilwood's race-winning engineering for a durable and tough caliper made for off-road racing. Produced for SCORE, Best in the Desert (BITD), Ultra-4, Pre-Runner, and other off-road competition classes, each Wilwood AT6 Lug Mount Caliper features a hard anodized, black or red powder coating to ensure wear and abrasion protection in unrelenting conditions.

Wilwood AT6 Lug Mount Calipers employ a progressive differential bore with 1.750 in. primary pistons and 1.380 in. secondary pistons, assuring even pad wear. The six stainless steel pistons in the Wilwood AT6 Lug Mount Calipers reduce heat transfer, resist corrosion and use a seal-in-bore design that prevents tearing.

Features:
