WILWOODPART NUMBER: 950-120-14876

120-14876 D154-R Single Piston Floater

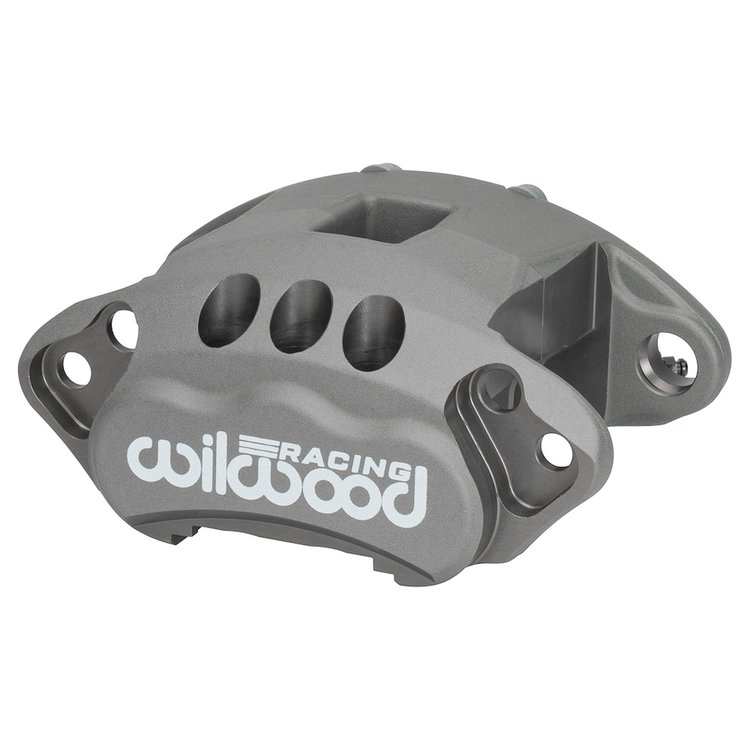

Name: 120-14876 D154-R Single Piston Floater
Brand: WILWOOD
SKU: 950-120-14876
Price: 179.81 USD
Availability: InStock

^$179⁸¹

Ships on 09/08/2026

Lowest Price Guarantee

D154-R
2.00
1.04 Rotor
Anodized

Wilwood 120-14876 Features:
Wilwood's newest race caliper, the D154-R starts with a forged aluminum Type III hard anodized body with stainless steel piston. With a choice of 2.50 in. or 2.00 in. pistons and covering rotors from .81 in. to 1.04 in. thickness up to 12.19 in. diameter.

Part TypeDisc Brake Caliper

BrandWILWOOD

Package Height4.0

Package Width5.88

Package Length8.88

Weight3.25 PG

Weight3.250

Part CategoryPerformance Parts

Caliper Piston Quantity1

Mount LocationUniversal

Caliper ColorAnodize

Piston Diameter2.00 in.

Maximum Outside Diameter12.19 in.

Maximum Inside Diameter0.81 in.

Dust Boot IncludedNo

Mount Hole Center To Center5.46 in.

Rotor Thickness1.04 in.

Maximum Thickness1.04 in.

Component TypeD154-R Single Piston Floater

Minimum Thickness0.81 in.

Mount TypeFloating

Piston MaterialStainless

Part FitmentSemi Universal

Caliper FinishType III Anodize

Vendor Part Number120-14876

Package Qty1

Package TypeEA
