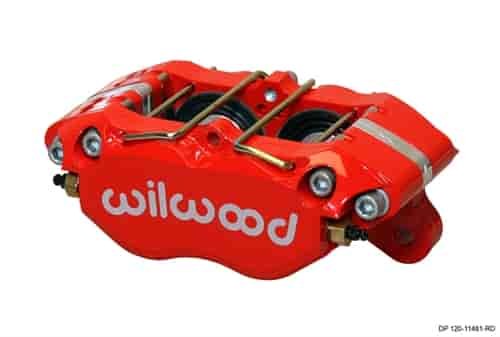

DyanPro Dust Boot 4 Piston Billet Caliper Lug Mount

Name: DyanPro Dust Boot 4 Piston Billet Caliper Lug Mount
Brand: WILWOOD
SKU: 950-120-15131-RD
Price: 276.97 USD
Availability: InStock

^$276⁹⁷

Ships on 09/09/2026

Lowest Price Guarantee

DP-DB Billet Caliper

1.75'' / 1.75'' Piston Bore Sizes

1" Brake Disc Width

Lug Mount
1.75"/1.75" Piston Bore Sizes
1" Brake Disc Width

Red Powder Coat Finish

Product Specifications
Rotor Compatibility
Rotor Width:	1'
Maximum Rotor Width:	1.04"
Minimum Rotor Width:	0.94'
Maximum Rotor Diameter:	13.06'
Minimum Rotor Diameter:	10'
Brake Pad Specifications
Brake Pad Type 1:	7812
Brake Pad Type 2:	N/A
Brake Pad Type 3:	N/A
Total Pad Area (in/sq):	6.36'
Total Pad Volume (in/sq):	2.1'
Piston Specifications
Piston 1 Bore:	1.75'
Piston 2 Bore:	1.75'
Piston 3 Bore:	N/A
Piston 4 Bore:	N/A
Total Piston Area (in/sq):	4.80'
Mounting Specifications
Mount Type:	Lug
Mount Side:	Universal
Mount Center:	5.25'
Mount Hole Size:	0.39'
Mount Height:	2.1'

Part TypeDisc Brake Caliper

BrandWILWOOD

Package Height3.8

Package Width5.4

Package Length8.3

Weight3.5 PG

Part CategoryPerformance Parts

Piston Diameter1.75 in (44.5 mm)

Part FitmentSemi Universal

Rotor Thickness1 in (25.4 mm)

Vendor Part Number120-15131-RD

Package Qty1

Package TypeEA
