WILWOODPART NUMBER: 950-120-15776

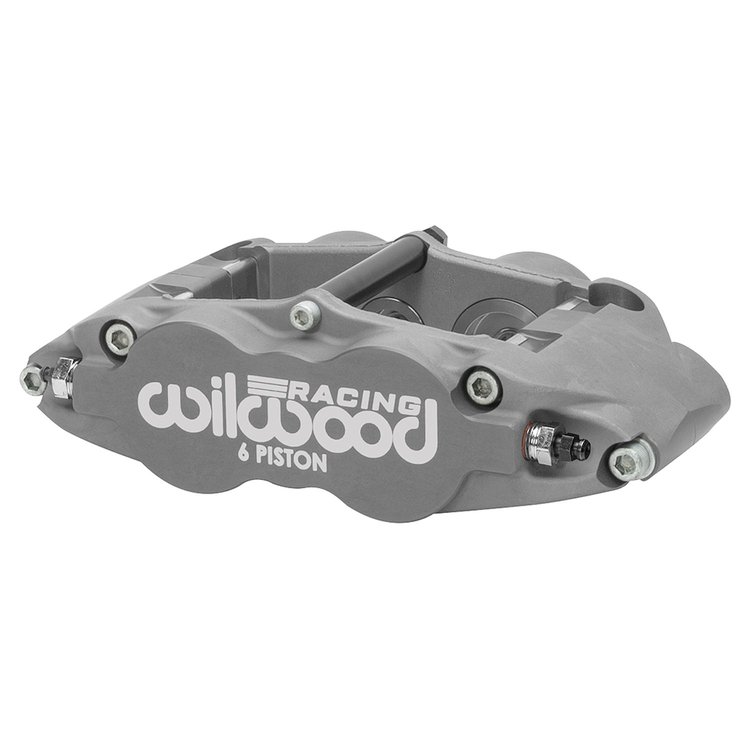

120-15776 Forged Narrow Superlite 6 Radial Mount

Name: 120-15776 Forged Narrow Superlite 6 Radial Mount
Brand: WILWOOD
SKU: 950-120-15776
Price: 681.06 USD
Availability: InStock

^$681⁰⁶

Ships on 09/15/2026

Lowest Price Guarantee

Caliper
St
1.75/1.25/1.25
1.25 Rotor
R/H
Anodized

Wilwood 120-15776 Features:
The Wilwood Forged Narrow Superlite 6R (FNSL6R) is our newest version for the venerable Superlite caliper series. These calipers integrate inBig Brakein style with Wilwood's latest technology to generate big stopping power in extreme environments over a broad range of vehicle applications.

Part TypeDisc Brake Caliper

BrandWILWOOD

Package Height3.13

Package Width5.81

Package Length10.25

Weight4.97 PG

Weight4.970

Part CategoryPerformance Parts

Caliper Piston Quantity6

Mount LocationRight Hand

Use Type7416

Caliper ColorAnodize

Piston Diameter1.25, 1.75

Maximum Outside Diameter14.00

Maximum Inside Diameter1.19

Dust Boot IncludedN

Mount Hole Center To Center5.98

Rotor Thickness1.25

Maximum Thickness1.25

Component TypeForged Narrow Superlite 6 Radial Mount

Minimum Thickness1.19

Mount TypeRadial

Piston MaterialThermlock

Part FitmentSemi Universal

Caliper FinishType III Anodize

Vendor Part Number120-15776

Package Qty1

Package TypeEA
