120-15894 Aero6 Radial Mount
InfoVehicle Info Needed
WILWOODPART NUMBER: 950-120-15894

120-15894 Aero6 Radial Mount

$60319
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

    Aero6 Radial Mount
  • 1.75/1.38/1.38
  • .810 Rotor .80 Thk L/H
  • Anodized

    Wilwood 120-15894 Features:

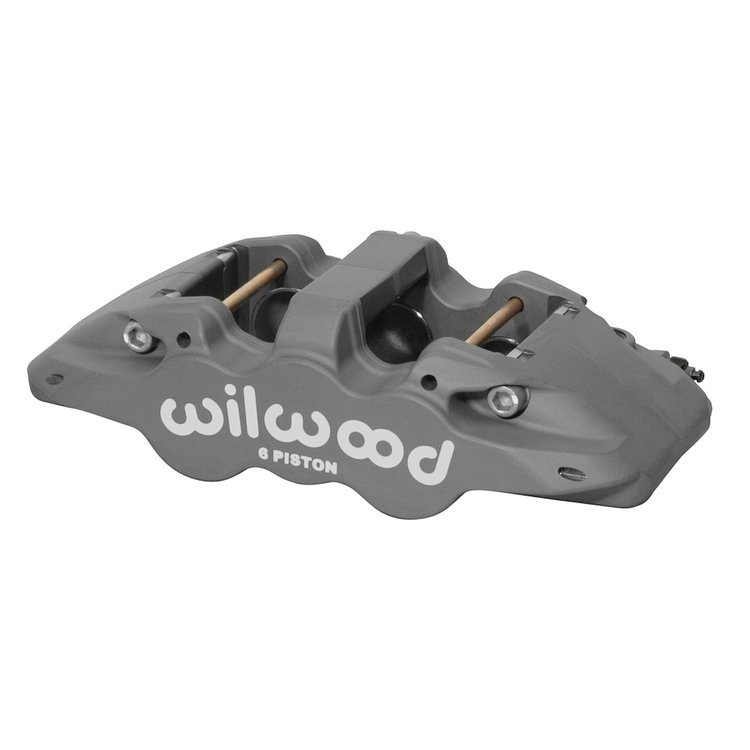

    The Wilwood Aero6 forged six piston caliper delivers heavy duty stopping power for the road or track. Radial mounting, multiple options for piston volume, and a rotor diameter ranging from 12.88in to 15.00in give this caliper the versatility necessary to suit all types of heavy weight braking requirements. The body of Aero series is stress-flow forged from a premium grade aluminum alloy billet. Stress-flow forging realigns the metal's internal grain structure to flow within the contour of the caliper body. This process eliminates the stresses and interruptions to the internal grain structure that occur when machining a straight block billet. The results are a caliper with superior clamping efficiency and ultimate strength against fatigue, stresses, and distortion under load.

Part TypeDisc Brake Caliper
BrandWILWOOD
Package Height3.63
Package Width7.19
Package Length12.5
Weight6.8 PG
Weight6.800
Part CategoryPerformance Parts
Caliper Piston Quantity6
Mount LocationLeft Hand
Caliper ColorAnodize
Piston Diameter1.38 in., 1.75 in.
Maximum Outside Diameter15.00 in.
Maximum Inside Diameter0.75 in.
Dust Boot IncludedNo
Mount Hole Center To Center7.09 in.
Rotor Thickness0.81 in.
Maximum Thickness0.84 in.
Component TypeAero6 Radial Mount
Minimum Thickness0.75 in.
Mount TypeRadial
Piston MaterialStainless
Part FitmentSemi Universal
Caliper FinishType III Anodize
Vendor Part Number120-15894
Package Qty1
Package TypeEA
