Made in USA

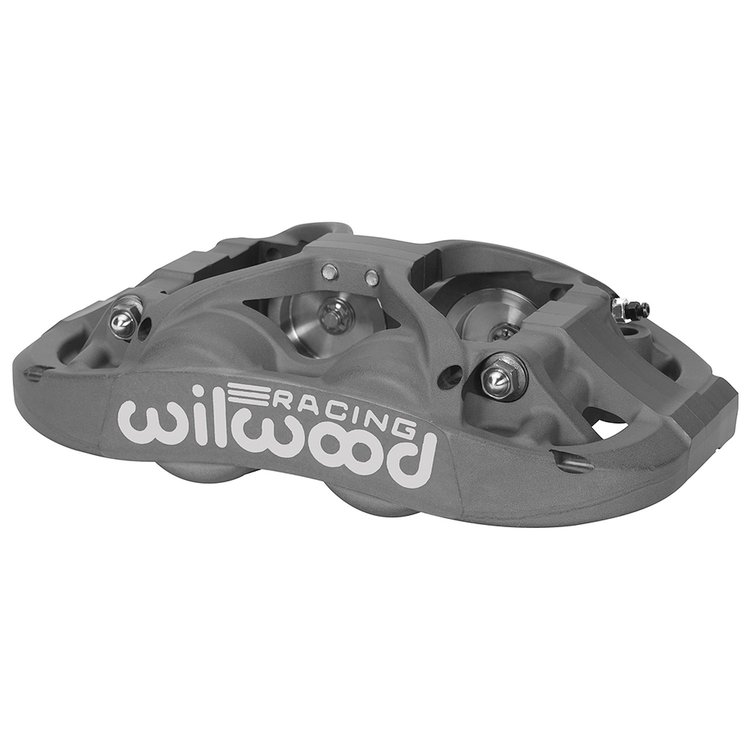

120-16461 XRZ4R Radial Mount
InfoVehicle Info Needed
WILWOODPART NUMBER: 950-120-16461

120-16461 XRZ4R Radial Mount

$87995
9 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

    XRZ4R Radial Mount
  • 1.88/1.75
  • 1.25 Rotor L/H
  • Anodized

    Wilwood 120-16461 Features:

    The innovative complex shape of the body removes unnecessary bulk, improves brake and fluid cooling, and actually decreases deflection. Four Thermlock® thermal barrier pistons reduce heat transfer to the brake fluid, and the staggered bore size front calipers provide more even engagement with improved pad wear. Hard-anodized inside the piston bores and on the surface with Type III aluminum-oxide ceramic finish for durability and equipped with single-point bleed technology and low-profile bleed screws for easy serviceability. No-bind pad retaining pins (spare included) hold your choice of multiple 0.80 in. thick Wilwood race compound brake pads for extended service life.

Part TypeDisc Brake Caliper
BrandWILWOOD
Package Height3.63
Package Width7.19
Package Length12.5
Weight5.43 PG
Weight5.430
Part CategoryPerformance Parts
Caliper Piston Quantity4
Mount LocationLeft Hand
Caliper ColorAnodize
Piston Diameter1.75 in., 1.88 in.
Maximum Outside Diameter14.00 in.
Maximum Inside Diameter1.15 in.
Dust Boot IncludedNo
Mount Hole Center To Center5.98 in.
Rotor Thickness1.25 in.
Maximum Thickness1.35 in.
Component TypeXRZ4R Radial Mount
Minimum Thickness1.15 in.
Mount TypeRadial
Piston MaterialThermlock
Part FitmentSemi Universal
Caliper FinishType III Anodize
Vendor Part Number120-16461
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
