WILWOODPART NUMBER: 950-120-16572

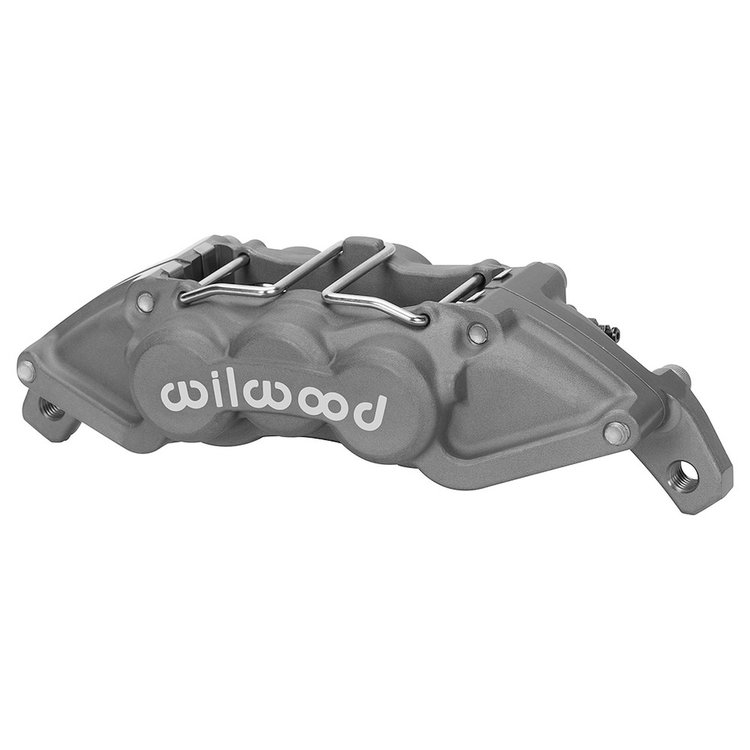

120-16572 UTV4 Caliper

Name: 120-16572 UTV4 Caliper
Brand: WILWOOD
SKU: 950-120-16572
Price: 284.10 USD
Availability: InStock

^$284¹⁰

Ships on 09/09/2026

Lowest Price Guarantee

1.00/1.00
.25 Rotor
Anodized

Wilwood 120-16572 Features:
UTV4 and UTV6 forged aluminum differential-bore four and six piston calipers are newest design for the specificaly UTV market. ASM design and forged construction reduce deflection and provide more uniform engagement to increase braking force and improve feel. Stainless steel pistons and anti-knock back springs further enhance the pedal feel. Calipers use standard 7812 shape, high-friction brake pads.

Part TypeDisc Brake Caliper

BrandWILWOOD

Package Height4.87

Package Width6.25

Package Length10.95

Weight3.13 PG

Weight3.130

Part CategoryPerformance Parts

Caliper Piston Quantity4

Mount LocationUniversal

Caliper ColorAnodize

Piston Diameter1.00 in.

Maximum Outside Diameter11.25 in.

Maximum Inside Diameter0.19 in.

Dust Boot IncludedNo

Mount Hole Center To Center8.75 in.

Rotor Thickness0.25 in.

Maximum Thickness0.25 in.

Component TypeUTV4 Caliper

Minimum Thickness0.19 in.

Mount TypeLug

Piston MaterialStainless

Part FitmentSemi Universal

Caliper FinishType III Anodize

Vendor Part Number120-16572

Package Qty1

Package TypeEA
