Vehicle Info NeededWILWOODPART NUMBER: 950-120-17290

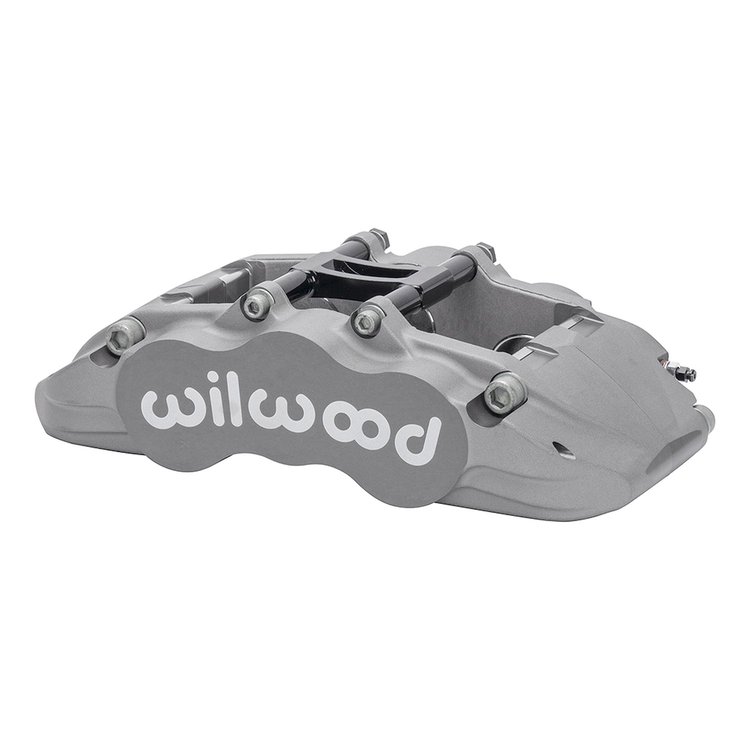

120-17290 AV6R Radial Mount
$65382
Ships Tomorrow
Lowest Price Guarantee- AV6R Radial Mount
- 1.75/1.38/1.38
- 1.30 Rotor R/H
- Anodized
Wilwood 120-17290 Features:
AV6R forged aluminum six-piston radial mount calipers bring current state-of-the-art design, materials, and manufacturing technology to this variation of long standing icon in the Wilwood caliper line. With a High-strength forged aluminum body in a hard-anodized finish and Purpose built for rotors with a 1.30 in. thickness and a special bracket offset.
Part TypeDisc Brake Caliper
BrandWILWOOD
Package Height3.63
Package Width7.19
Package Length12.5
Weight7.8 PG
Weight7.800
Part CategoryPerformance Parts
Caliper Piston Quantity6
Mount LocationRight Hand
Caliper ColorAnodize
Piston Diameter1.38 in., 1.75 in.
Maximum Outside Diameter13.28 in.
Maximum Inside Diameter1.25 in.
Dust Boot IncludedNo
Mount Hole Center To Center7.09 in.
Rotor Thickness1.30 in.
Maximum Thickness1.30 in.
Component TypeAV6R Radial Mount
Minimum Thickness1.25 in.
Mount TypeRadial
Piston MaterialStainless
Part FitmentSemi Universal
Caliper FinishType III Anodize
Vendor Part Number120-17290
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
