Wilwood 120-17603 Features:

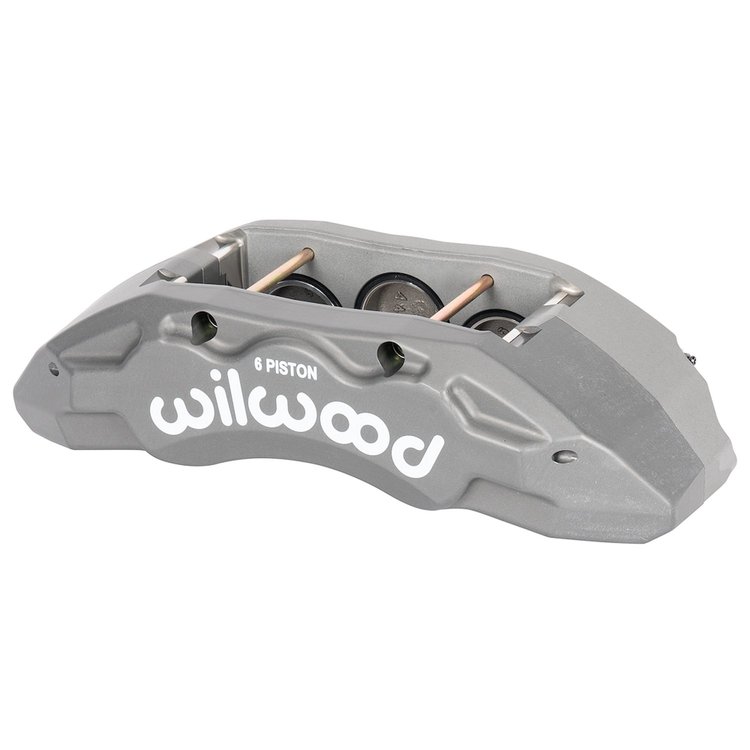

The Wilwood Tactical Xtreme TX6-DM direct mount six-piston calipers are engineered and purpose built for severe duty service on heavy duty Trucks, SUV's, and Class 1, 2, and 3 Armored Vehicles up to 14,000 lbs. GVWR. Tactical Xtreme TX6-DM calipers features include: a specific direct lug mount spacing and offset for specific vehicles. A Stress flow forged aluminum 6-piston body design with Stainless steel pistons with high-temp internal bore seals. Currently developed for rotors in the 15.00 in. diameter range and rotor widths of 1.50 in.. Easy access top loaded type 10120,.770 in. thick pads with rigid .240 in. thick backing plates. Stainless steel bridge plates and Protected single bleed design with internal fluid ports.
