Vehicle Info NeededWILWOODPART NUMBER: 950-120-7183

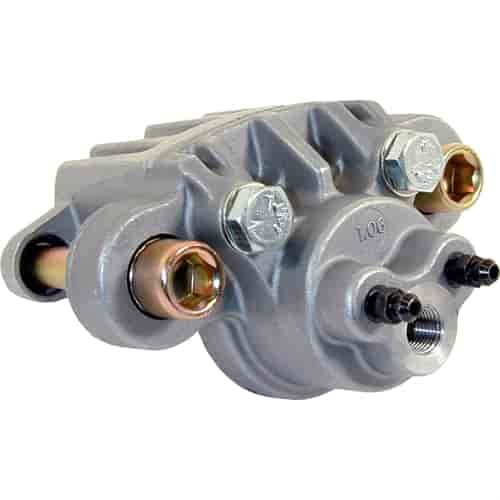

SC2 Series 1 Piston Brake Caliper Floating Mount
$7410
Ships on 09/10/2026
Lowest Price GuaranteeOne Piston Caliper
- SC2 Series 1 Piston Brake Caliper
- Floating Mount
- 1.19'' Piston Bore Sizes
- 0.25'' Brake Disc Width
Brake pads not included.
Vehicle Applications Driving Enviroment Vehicle Sub-Types Application Duty Power Sports ATV, Snowmobile Medium Duty Industrial Medium Duty Product Specifications Rotor Compatibility Rotor Width: 0.25' Maximum Rotor Width: 0.25' Minimum Rotor Width: 0.15' Maximum Rotor Diameter: 9.0' Minimum Rotor Diameter: 6.5' Brake Pad Specifications Brake Pad Type 1: 6407 Brake Pad Type 2: N/A Brake Pad Type 3: N/A Total Pad Area (in/sq): 1.7' Total Pad Volume (in/sq): 0.26' Piston Specifications Piston 1 Bore: 1.19' Piston 2 Bore: N/A Piston 3 Bore: N/A Piston 4 Bore: N/A Total Piston Area (in/sq): 1.06' Mounting Specifications Mount Type: Floating Mount Side: Universal Mount Center: 3' Mount Hole Size: 0.67' Mount Height:
Part TypeDisc Brake Caliper
BrandWILWOOD
Package Height3.2
Package Width4.5
Package Length5.0
Weight1.28 PG
Part CategoryPerformance Parts
Caliper Piston QuantityOne
Caliper MaterialAluminum
Brake Pads IncludedNo
QuantitySold individually
Piston Diameter1.19 in (30.2 mm)
Fitting Attachment 1Female Threads
Rotor Thickness0.25 in (6.4 mm)
Caliper SeriesSC2
Parking Brake ProvisionNo
Thread Size (Mm)10 x 1.0
Fittings IncludedNo
Brackets IncludedNo
Part FitmentSemi Universal
Caliper FinishClear anodized
Vendor Part Number120-7183
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
