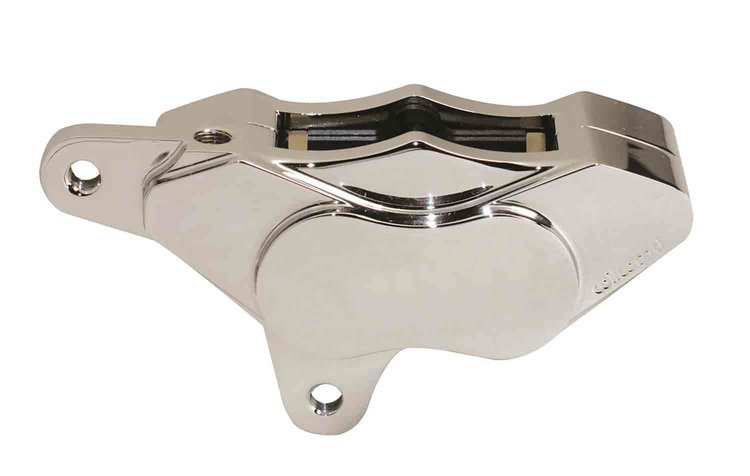

GP 310 4 Piston Motorcycle Front Brake Caliper 1984-99 Harley Davidson

Name: GP 310 4 Piston Motorcycle Front Brake Caliper 1984-99 Harley Davidson
Brand: WILWOOD
SKU: 950-120-7737
Price: 543.71 USD
Availability: InStock

^$543⁷¹

Ships on Sep 07, 2026

Lowest Price Guarantee

1984-99 Harley Davidson

Front Brake Caliper

1984-99 Harley Davidson
1.25'' / 1.25'' Piston Bores
11.5'' Rotor Dia.
0.25'' Disc Width
Left Hand, Direct Leg Mount

Chrome Finish

Vehicle Applications
Driving Enviroment	Vehicle Sub-Types	Application Duty
Motorcycle		Heavy Duty
Powersports	ATV, Snowmobiles	Medium Duty

Product Specifications
Rotor Compatibility
Rotor Width:	0.25'
Maximum Rotor Width:	0.25'
Minimum Rotor Width:	0.18'
Maximum Rotor Diameter:	11.5'
Minimum Rotor Diameter:	11.0'
Brake Pad Specifications
Brake Pad Type 1:	6208
Brake Pad Type 2:	N/A
Brake Pad Type 3:	N/A
Total Pad Area (in/sq):	3.65'
Total Pad Volume (in/sq):	0.63'
Piston Specifications
Piston 1 Bore:	1.25'
Piston 2 Bore:	1.25'
Piston 3 Bore:	N/A
Piston 4 Bore:	N/A
Total Piston Area (in/sq):	2.46'
Mounting Specifications
Mount Type:	Lug
Mount Side:	Left Hand, Direct Leg Mount
Mount Center:	3.44'
Mount Hole Size:	3/8'-16
Mount Height:	2.33'

Legendary Stopping Power, Show Quality Finish!

Wilwood's GP 310 motorcycle disc brake calipers have been designed and engineered for use on 1984-present Harley-Davidson® Motorcycles. Built around a 4-piston, high performance powerhouse, these billet aluminum calipers bring distinctive, bolt-on styling.

Features:

Direct leg-mounted calipers are available for all single and dual disc models (except Springer and 4-speed FL models), as well as the 1983 XR 1000
Available in polished, brilliant chrome, high luster black powder coat finishes
Stainless steel pistons are employed to reduce brake fade while resisting corrosion
High temperature piston seals are utilized to extend life, control retraction, and provide drag free operation
Additional features include bright finish bleed screws and hardware, plus an exclusive anti-rattle pad clip
Low dust, low noise brake pads are designed to operate in the widest range of temperatures and environments, utilizing our industry leading stainless steel rotor compatible formulation
