![Superlite BNSL6R Brake Caliper 1.620 in. / 1.120 in. / 1.125 in. Piston Bore [Red] Right](https://www.jegs.com/images/mini_750/900/950/950-120-8000-rsr.jpg)
Vehicle Info NeededWILWOODPART NUMBER: 950-120-8000-RSR

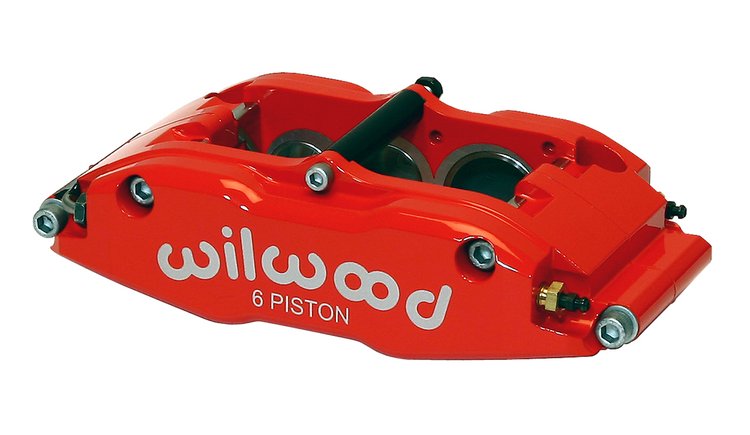

Superlite BNSL6R Brake Caliper 1.620 in. / 1.120 in. / 1.125 in. Piston Bore [Red] Right
$23679
Ships on 09/16/2026
Lowest Price GuaranteeRear Brake Calipers
- Superlite BNSL6R Brake Caliper
- Radial Mount
- 1.620 in. / 1.120 in. / 1.125 in. Piston Bore Sizes
- 1.250 in. Brake Disc Width
- Right Hand Mount
- Red Anodized Finish
- Billet SL6R and SL6R/ST Calipers with Narrowed Outboard Body
Calipers in this group feature a narrowed outboard body to provide additional clearance between the brake caliper face and the wheel or hub. These high performance brake calipers are primarily used with wide 5 hubs, OE Performance "Big Brake" conversions, road racing, and other close fit wheel applications. The brake caliper bridge radius will clear rotors from 11.75" to 13.00" in overall diameter. Each caliper in this group uses 7420 type 20 mm thick pads.
Part TypeDisc Brake Caliper
Product LineWilwood Superlite SL6R Brake Calipers
BrandWILWOOD
Package Height4.6
Package Width6.4
Package Length10.3
Weight4.7 PG
Part CategoryPerformance Parts
Caliper Piston QuantitySix
Caliper MaterialAluminum
Brake Pads IncludedNo
QuantitySold individually
Piston Diameter1.62 in (41.1 mm)
Rotor Thickness1.25 in (31.8 mm)
Caliper SeriesBillet Superlite 6
Caliper LogoWilwood
Parking Brake ProvisionNo
Fittings IncludedNo
Brackets IncludedNo
Caliper FinishRed powdercoated
Vendor Part Number120-8000-RSR
Package Qty1
Package TypeEA
