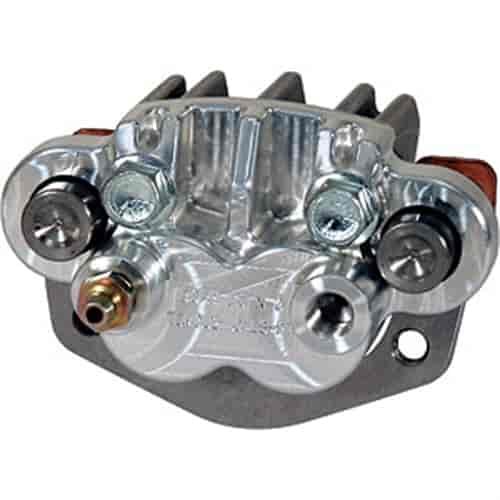

Vehicle Info NeededSC2 Series 1 Piston Brake Caliper Floating Mount
Ships on 09/14/2026
Lowest Price Guarantee- SC2 Series 1 Piston Brake Caliper
- Floating Mount
- 1.19'' Piston Bore Sizes
- 0.25'' Brake Disc Width
Vehicle Applications Driving Enviroment Vehicle Sub-Types Application Duty Power Sports ATV, Snowmobile Medium Duty Industrial Medium Duty Product Specifications Rotor Compatibility Rotor Width: 0.25' Maximum Rotor Width: 0.25' Minimum Rotor Width: 0.15' Maximum Rotor Diameter: 9.0' Minimum Rotor Diameter: 6.5' Brake Pad Specifications Brake Pad Type 1: 6407 Brake Pad Type 2: N/A Brake Pad Type 3: N/A Total Pad Area (in/sq): 1.7' Total Pad Volume (in/sq): 0.26' Piston Specifications Piston 1 Bore: 1.19' Piston 2 Bore: N/A Piston 3 Bore: N/A Piston 4 Bore: N/A Total Piston Area (in/sq): 1.06' Mounting Specifications Mount Type: Floating Mount Side: Universal Mount Center: 3' Mount Hole Size: 0.67' Mount Height: 0.12'
Strong, Compact and Lightweight Package!
Wilwood's SC Series Brake Caliper is designed, engineered and manufactured in the U.S.A.! This single piston floating mount die-cast aluminum caliper is a strong, compact, inexpensive answer to the braking needs of recreational, agricultural and industrial vehicles. Features of this single piston design include availability of either 1.06'', 1.19'' or 1.25'' bore size, fitted dust seal to prevent ingress of environmental contamination, dual bleed fittings for versatility in mounting position and fluid inlets in M10 x 1.0 banjo.
Show More
The mounting system features corrosion resistant slide pins floating in viscoelastic rings mounted in the ears of the body for smooth, rattle-free operation. This system controls pad knock-back to retain a consistent pedal or hand lever feel throughout the life of the pads. Weight: from 1.1 pounds. Rotor thickness range: .15'' to .25''
- Die cast aluminum caliper is a strong, compact, inexpensive 4.20 (106,7) answer to the braking needs of recreational, agricultural and industrial vehicles
- Available in three bore sizes: 1.06'', 1.19'' or 1.25''
- Light weight starting at just 1.1 pounds
- Standard M10 x 1.0 banjo inlet
- Fits rotors from .15'' to .25'' wide
