Front

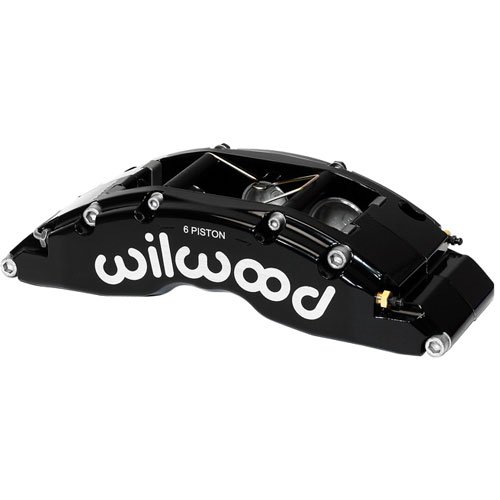

- TC6 Caliper
- Left Hand Side
- 8.27" Radial Mount
- Piston Diameter: 5.40"
- Rotor Width: 1.38"
- Black
- Wilwood TC6R Radial Mount Calipers are purpose built to provide unsurpassed braking capacity on trucks and SUVs with 20" and larger wheels and tires. TC6R calipers are stress flow forged from premium grade, billet aluminum alloy blanks. FEA structural analysis technology was employed to develop a design that minimizes weight, and maximizes rigidity against deflection. The expanded bridge radius easily accommodates 1.38" thick rotors up to a full 16" in diameter. The bodies are joined and reinforced through the bridge with six high strength coated steel alloy bolts. Cross bridge bolts add strength against deflection and body separation at high pressures and heavy loads. Steel insert plates protect the bridges against wear and gouging from the load bearing edges of the brake pads.
Part TypeDisc Brake Caliper
Product LineWilwood TC6R Radial Mount Calipers
BrandWILWOOD
Package Height3.7
Package Width7.4
Package Length14.4
Weight9.42 PG
Part CategoryPerformance Parts
Caliper Piston QuantitySix
Caliper MaterialAluminum
Brake Pads IncludedNo
QuantitySold individually
Piston Diameter1.750/1.380
Fitting Attachment 1Female Threads
Rotor Thickness1.38 in (35.1 mm)
Caliper SeriesTC 6R Radial Mount
Caliper LogoWilwood
Parking Brake ProvisionNo
Fittings IncludedNo
Brackets IncludedNo
Caliper FinishBlack powdercoated
Vendor Part Number120-8908-FS
Package Qty1
Package TypeEA
