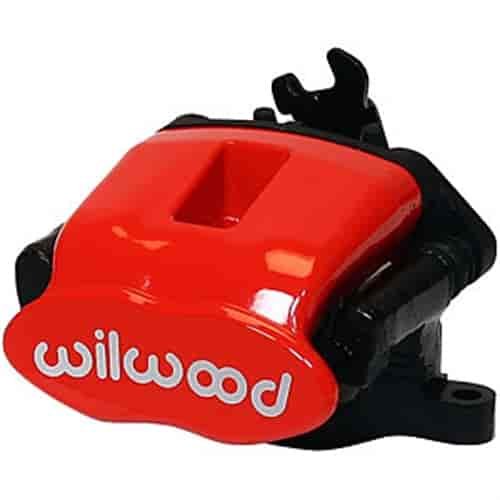

Vehicle Info NeededWILWOODPART NUMBER: 950-120-9809-RD
Combination Brake / Parking Brake Caliper 1.34" Bore Size
$30485
Ships Tomorrow
Lowest Price GuaranteeCombination Parking Brake Caliper1.34'' Bore Size 0.81'' Disc Width
- Combination Brake / Parking Brake Caliper
- 1.34'' Bore Size
- 0.81'' Disc Width
- Left Hand Mount
- Red Powder Coat Finish
Vehicle Applications Driving Enviroment Vehicle Sub-Types Application Duty Street Rods Heavy Duty Street Performance Domestic Heavy Duty Street Performance Import Heavy Duty Rally Medium Duty Road Race Medium Duty Late Model Dirt STARS, UMP, IMCA, etc... Heavy Duty Drag Racing Heavy Duty Northeast Modified Dirt or Pavement Medium Duty Open Wheel Sprint, Midget, etc...
Dirt or PavementMedium Duty Off Road Medium Duty Industrial Medium Duty Product Specifications Rotor Compatibility Rotor Width: 0.81' Maximum Rotor Width: 0.81' Minimum Rotor Width: 0.75' Maximum Rotor Diameter: 13' Minimum Rotor Diameter: 11' Brake Pad Specifications Brake Pad Type 1: D340 Brake Pad Type 2: N/A Brake Pad Type 3: N/A Total Pad Area (in/sq): 4' Total Pad Volume (in/sq): 1.5' Piston Specifications Piston 1 Bore: 1.34' Piston 2 Bore: N/A Piston 3 Bore: N/A Piston 4 Bore: N/A Total Piston Area (in/sq): 1.38' Mounting Specifications Mount Type: Radial Mount Side: Left Hand Mount Center: 5.98' Mount Hole Size: 0.39' Mount Height: 2.08'
Parking Brakes made Simple
Wilwood offers several different styles of parking brake kits to fit many popular muscle cars, street rods, and drag cars. Their most common combination parking brake features a hydro-mechanical caliper that uses hydraulic pressure for stopping and a mechanical locking mechanism for a parking brake. Looking to eliminate additional brake hoses and shave off some extra weight? They now offer an electronic parking brake as well! With up to 2,400 pounds of clamping force, these kits include all the necessary hardware, wiring, and switches you need.
Part TypeDisc Brake Caliper
Product LineWilwood Parking Brake Kits
BrandWILWOOD
Package Height4.9
Package Width7.9
Package Length8.3
Weight5.81 PG
Part CategoryPerformance Parts
Caliper Piston QuantityOne
Caliper MaterialAluminum
Brake Pads IncludedNo
QuantitySold individually
Piston Diameter1.34 in (34 mm)
Rotor Thickness0.81 in (20.6 mm)
Caliper SeriesCombination
Caliper LogoWilwood
Parking Brake ProvisionNo
Thread Size (Mm)10 x 1.0
Fittings IncludedNo
Brackets IncludedNo
Part FitmentSemi Universal
Caliper FinishRed powdercoated
Vendor Part Number120-9809-RD
Package Qty1
Package TypeEA
