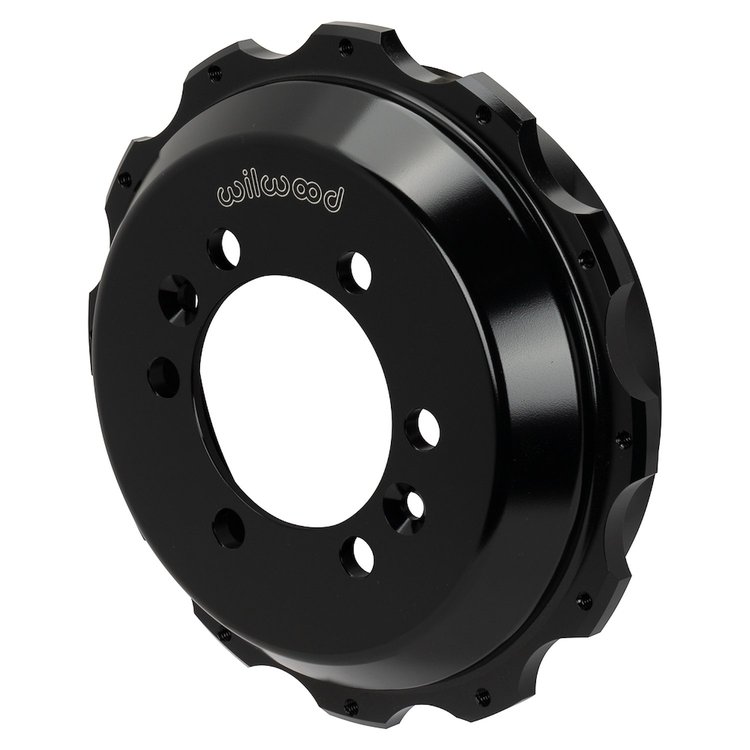

170-15503 Parking Brake Hat - Standard

Name: 170-15503 Parking Brake Hat - Standard
Brand: WILWOOD
SKU: 950-170-15503
Price: 228.52 USD
Availability: InStock

^$228⁵²

Ships on Sep 11, 2026

Lowest Price Guarantee

D-Drum
12X8.75 Bc
6X4.250 Mt
1.272 Offset
3.280 Reg
Alum

Wilwood 170-15503 Features:
These premium grade aluminum hats are used with Wilwood's internal shoe parking brake kits. Each hat is a precision machined, threaded hole design for use in conjunction with through-hole mount rotors. After machining, the hats are electro-coated for corrosion resistance.

Part TypeDisc Brake Hardware

BrandWILWOOD

Package Height3.38

Package Width9.75

Package Length9.75

Weight2.95 PG

Weight2.950

Part CategoryPerformance Parts

MaterialAluminum

Thread Size1/4-20 in.

Offset1.270 in.

Mount Hole ShapeThreaded

Wheel Stud Size0.530 in.

Brake Drum Inside Diameter7.55 in.

Mounting Bolt Hole Circle Diameter12 x 8.75 in.

Bolt Circle Diameter6 x 4.25 in.

Component TypeParking Brake Hat - Standard

Mount TypeFixed Mount

Installation Adapters3.28 in.

Face Thickness0.31 in.

Part FitmentSemi Universal

FinishBlack E-Coat

Vendor Part Number170-15503

Package Qty1

Package TypeEA
