170-15920 Big Brake Hat - Short Offset

Name: 170-15920 Big Brake Hat - Short Offset
Brand: WILWOOD
SKU: 950-170-15920
Price: 116.21 USD
Availability: InStock

^$116²¹

Ships on 09/09/2026

Lowest Price Guarantee

6X6.25 Bc
4X4.00 Mt
.725 Offset 3.131 Reg

Wilwood 170-15920 Features:

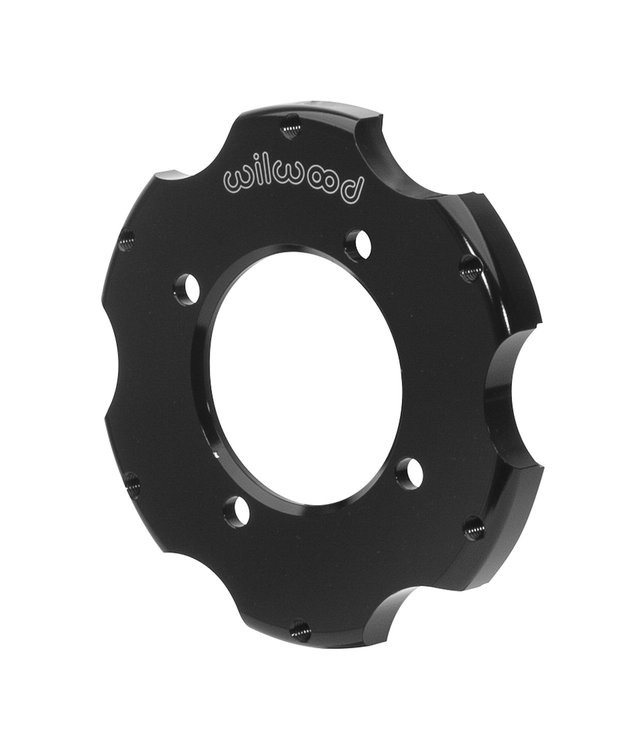

This Big Brake Short Offset hat is designed for a front mounting design to be used as a (backside) hub mount, opposite of our traditional over the hub mounting. Designed specifically for the Triumph TR6 with a 4 x 4.00 bolt circle and an 6 x 6.25 rotor bolt circle. Big Brake Short Offset hats are precision machined from premium aluminum alloys for high strength and attention to minimized weight. Hats in this category feature threaded rotor mount holes for use with standard through-hole mount rotors.

Part TypeDisc Brake Hardware

BrandWILWOOD

Package Height2.0

Package Width8.5

Package Length8.5

Weight1.15 PG

Weight1.150

Part CategoryPerformance Parts

MaterialAluminum

Thread Size5/16-18 in.

Offset0.725 in.

Mount Hole ShapeThreaded

Wheel Stud Size0.390 in.

Mounting Bolt Hole Circle Diameter6 x 6.25 in.

Bolt Circle Diameter4 x 4.00 in.

Component TypeBig Brake Hat - Short Offset

Mount TypeFixed Mount

Installation Adapters3.13 in., Intended front side mount offset is 0.725", traditional back side mount offset is 0.475" in.

Face Thickness0.25 in.

Part FitmentSemi Universal

FinishBlack E-Coat

Vendor Part Number170-15920

Package Qty1

Package TypeEA
