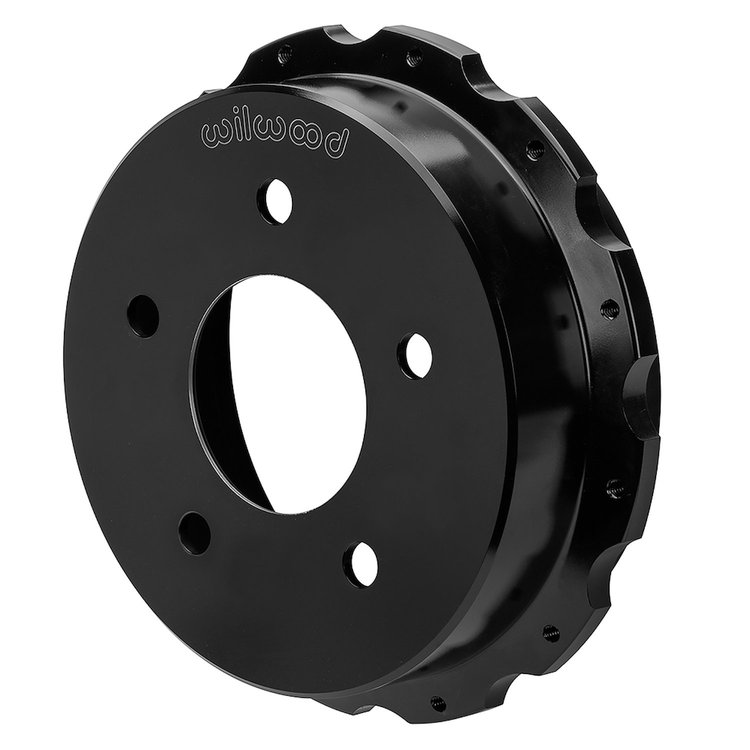

170-17530 Parking Brake Hat - Standard

Name: 170-17530 Parking Brake Hat - Standard
Brand: WILWOOD
SKU: 950-170-17530
Price: 259.07 USD
Availability: InStock

^$259⁰⁷

Ships on 09/09/2026

Lowest Price Guarantee

D-Drum
12X8.75 Bc
5X5.00 Mt
1.95 Off 3.094 Reg
Alum

Wilwood 170-17530 Features:
These premium grade aluminum hats are used with Wilwood's internal shoe parking brake kits. Each hat is a precision machined, threaded hole design for use in conjunction with through-hole mount rotors. After machining, the hats are electro-coated for corrosion resistance.

Part TypeDisc Brake Hardware

BrandWILWOOD

Package Height3.38

Package Width9.75

Package Length9.75

Weight4.2 PG

Weight4.200

Part CategoryPerformance Parts

MaterialAluminum

Thread Size1/4-20 in.

Offset1.950 in.

Mount Hole ShapeThreaded

Wheel Stud Size0.580 in.

Brake Drum Inside Diameter7.23 in.

Mounting Bolt Hole Circle Diameter12 x 8.75 in.

Bolt Circle Diameter5 x 5.00 in.

Component TypeParking Brake Hat - Standard

Mount TypeFixed Mount

Installation Adapters3.09 in.

Face Thickness0.18 in.

Part FitmentSemi Universal

FinishBlack E-Coat

Vendor Part Number170-17530

Package Qty1

Package TypeEA

No Questions

No Reviews

Some parts are not legal for use in California or other states with similar laws / regulations

⚠️ Warning
