Vehicle Info NeededWILWOODPART NUMBER: 950-340-15075

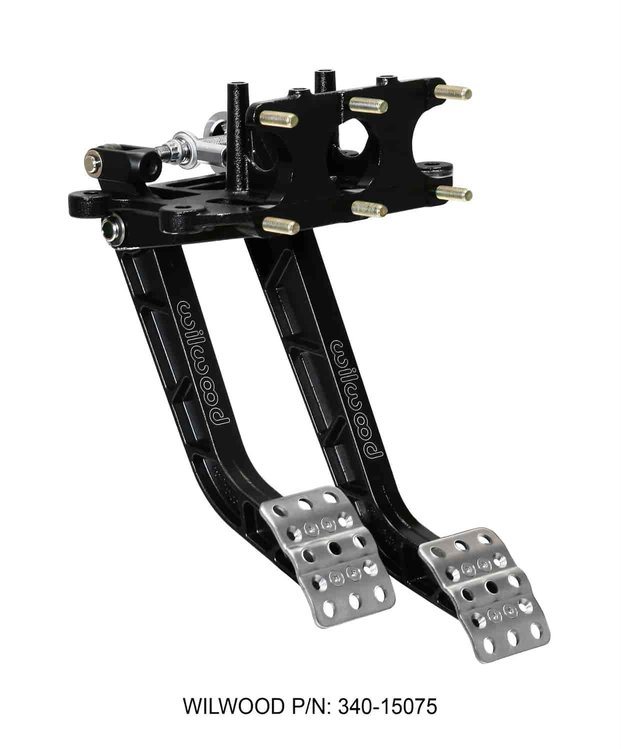

Brake and Clutch Pedal Assembly With Tru-Bar Balance Bar
$50818
4 left in stock
Ships on Sep 14, 2026
Lowest Price GuaranteeReverse Swing Pedals
- Brake and Clutch Pedal Assembly
- With Tru-Bar Balance Bar
- Mount Location: Swing
- Mount Facing: Reverse
- Ratio: 6.25:1 / 5.1:1
Wilwood's Tru-Bar balance bar system is now available in a Reverse Swing mount pedal with a 6.25:1 ratio and 5.1:1 clutch. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments. They provide ultimate precision, control, and adjustment of the brake bias on race prepped vehicles. The new Tru-Bar pedals utilize the same chassis and master cylinder mounting as all Wilwood balance bar style pedals. A stronger and larger diameter 7/16-20 bar provides quicker adjustment and features a shouldered 3/8" diameter end to attach the standard remote adjuster cable to deliver professional, championship caliber performance. Wilwood's Tru-Bar balance bar utilizes a fixed trunnion bearing in the pedal arm with spherical rod ends at the pushrod connections. It provides the ultimate in precision bias adjustment, control, and fine tuning on race prepped vehicles equipped with twin brake Master cylinder systems and proportionately sized calipers.
Part TypePedal Assembly Component
BrandWILWOOD
Package Height6.13
Package Width9.19
Package Length15.5
Weight5.19 PG
Part CategoryPerformance Parts
Pedal Mounting LocationReverse mount
Balance Bar IncludedYes
QuantitySold individually
Pedal MaterialAluminum
Master Cylinder IncludedNo
Part FitmentSemi Universal
Vendor Part Number340-15075
Package Qty1
Package TypeEA
