Vehicle Info Needed

WILWOODPART NUMBER: 950-340-15079

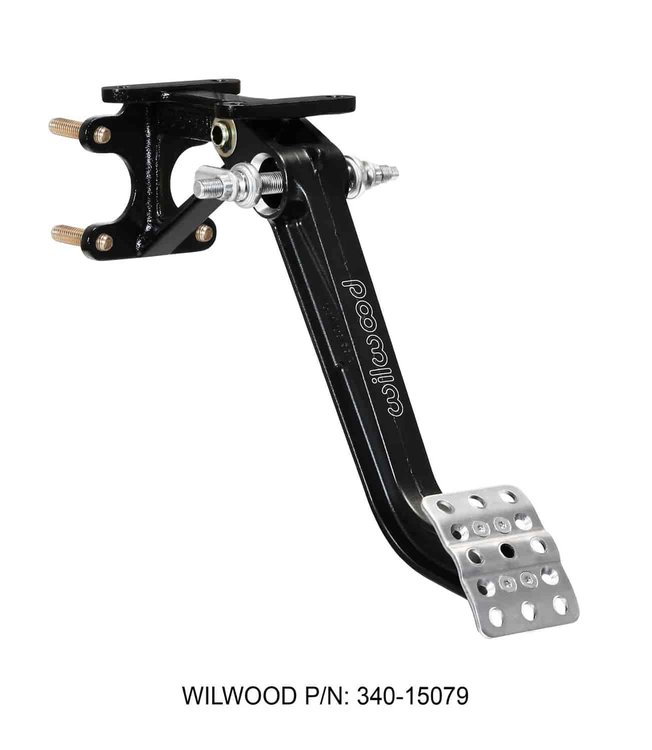

Brake Pedal Assembly With Tru-Bar Balance Bar

Name: Brake Pedal Assembly With Tru-Bar Balance Bar
Brand: WILWOOD
SKU: 950-340-15079
Price: 386.23 USD
Availability: InStock

^$386²³

6 left in stock

Ships Tomorrow

Lowest Price Guarantee

Swing Mount Pedals

With Tru-Bar Balance Bar
Mount Location: Swing
Mount Facing: Forward
Ratio: 7.0:1

Wilwood's Tru-Bar balance bar system is now available in a Forward Swing mount pedal with a 7:1 ratio. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments. They provide ultimate precision, control, and adjustment of the brake bias on race prepped vehicles. The new Tru-Bar pedals utilize the same chassis and master cylinder mounting as all Wilwood balance bar style pedals. A stronger and larger diameter 7/16-20 bar provides quicker adjustment and features a shouldered 3/8" diameter end to attach the standard remote adjuster cable to deliver professional, championship caliber performance. Wilwood's Tru-Bar balance bar utilizes a fixed trunnion bearing in the pedal arm with spherical rod ends at the pushrod connections. It provides the ultimate in precision bias adjustment, control, and fine tuning on race prepped vehicles equipped with twin brake Master cylinder systems and proportionately sized calipers.

Part TypePedal Assembly

BrandWILWOOD

Package Height5.38

Package Width6.44

Package Length12.88

Weight3.04 PG

Part CategoryPerformance Parts

Pedal Mounting LocationForward mount

Balance Bar IncludedYes

QuantitySold individually

Pedal MaterialAluminum

Master Cylinder IncludedNo

Part FitmentSemi Universal

Vendor Part Number340-15079

Package Qty1

Package TypeEA

No Questions

No Reviews
