Made in USA
Pedal Arm Ratio: 5.10:1
InfoVehicle Info Needed
WILWOODPART NUMBER: 950-340-15151

Pedal Arm Ratio: 5.10:1

$29991
ShippingShips on 09/09/2026
Lowest PriceLowest Price Guarantee

Brake or Clutch Pedal Kits
    Pedal Arm
  • Mount Location: Swing
  • Mount Facing: Reverse
  • Ratio: 5.00:1

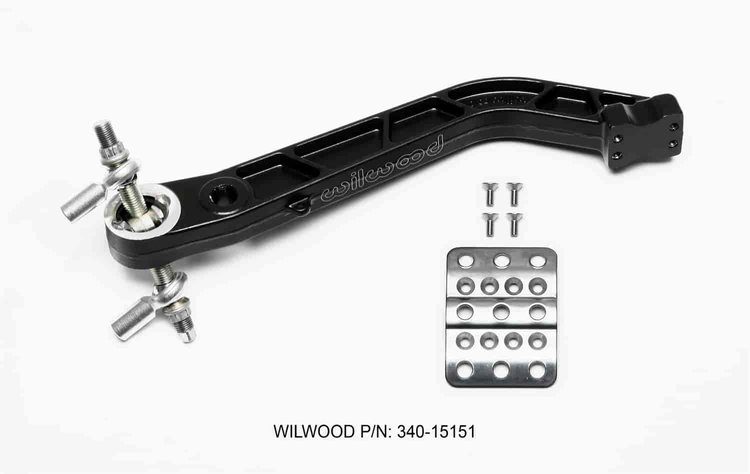

    Wilwood’s new Tru-Bar Reverse Mount Pedal Replacement Kit includes the Tru-Bar Brake pedal & trunion assembly with the appropriate hardware to retrofit earlier design forged or cast pedal assemblies with standard balance bars. Pedals feature an all aluminum frame and forged aluminum pedal arms with ladder style construction. Pedal pads are of special adjustable design that allows fine-tuning of the pedal location and clearance. Included with this assembly: trunion, clevis hardware required in the conversion.

    High-Performance Pedal Assemblies

    Wilwood's Pedal Assemblies offer many significant improvements over other available brake and clutch pedals. A more extended balance bar design allows for greater adjustability for minor adjustments in independent front and rear braking systems.

Part TypePedal Assembly Component
Product LineWilwood Balance Bar & Performance Pedals
BrandWILWOOD
Package Height2.5
Package Width4.88
Package Length14.38
Weight1.7 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number340-15151
Package Qty1
Package TypeEA
